RS-PI09CA03 Rugged Middle Range Integrated Passive UHF RFID Reader

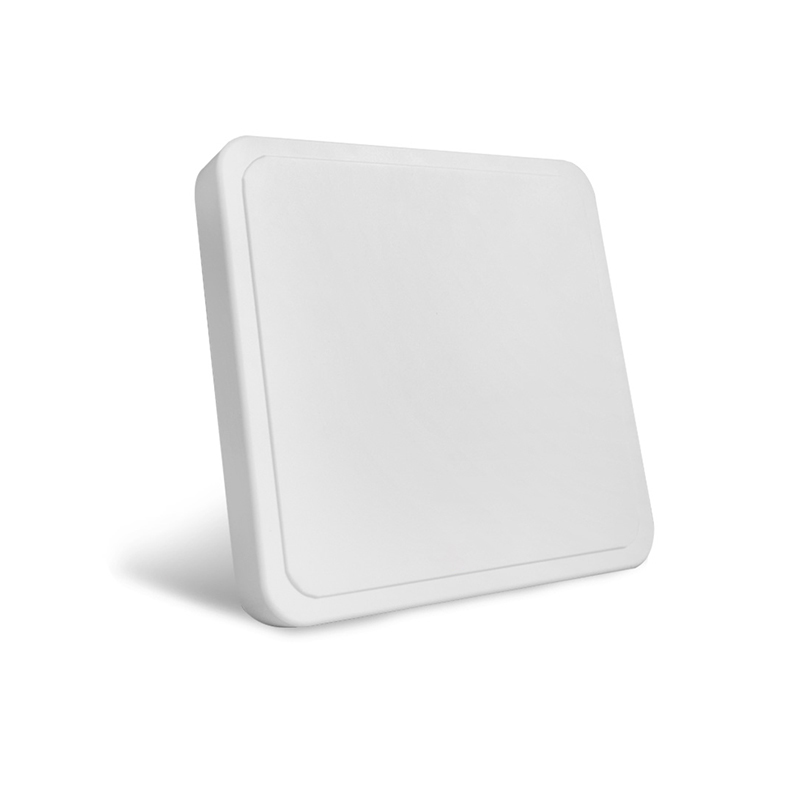

RS-PI09CA03 rugged middle range integrated passive UHF RFID reader. It compliance ISO18000-6C protocol, work in 860MHz ~960MHz frequency band, meets American Standard (902~928mhz), European standard (865~868mhz), national standard (920~925mhz)etc. The maximum transmitting power of each port is 30dBm, and integrated 9dbi circular polarization antenna, with Linux operating system and IP67 protection structure design. It widely used for indoor and poor outdoor environment, like asset management, warehouse, logistics, vehicle parking, intelligent weighing and personnel management and other scenarios.

Enquiry

Functions

Compliance ISO-18000-6C protocol tag read, write, lock, kill etc, multi-tags reading function
Build in LINUX OS, Impinj Indy R2000 RFID chip, fast and accurate reading rate
Support 902-928MHz FCC, 865-868MHz CE, other frequency band customizable
Compliance CE and FCC certifications
Support standard 10/100 Ethernet communication interface; RS232, RS485, USB,
GPIO, Wiegand 26/34 etc interface optional
Standard 802.11 WIFI or 4G LTE optional
Support the use of WiFi for reader wireless control, parameter configuration and upgrade functions
Continuous transmission data when network disconnection, data filtering function
Store 100000 pieces tags data
Support self-check, log management, local and remote FW upgrade
Support command, auto and trigger (command, timing and external) work mode, meet different user's requirement
Support firmware online upgrade through communication interface
Web access function
Provides API user interface, which can facilitate user's rapid integration and docking
POE function (Power on Ethernet) optional

Applications

Parameters

General Parameters
Processor	ARM9
Storage capacity	Flash 256MB, 64MB RAM
Operation system	LINUX 4.4.26
Antenna	9dBi circular
Work temperature	-20℃ ~+60℃
Storage temperature	-40℃ ~+70℃
Work humidity	5% ~95% (non-condensing)
Power	External power adaptor 12V/3A
Power consumption	2W Standby 10W Work
IP rate	IP65
Weight	2.5kg

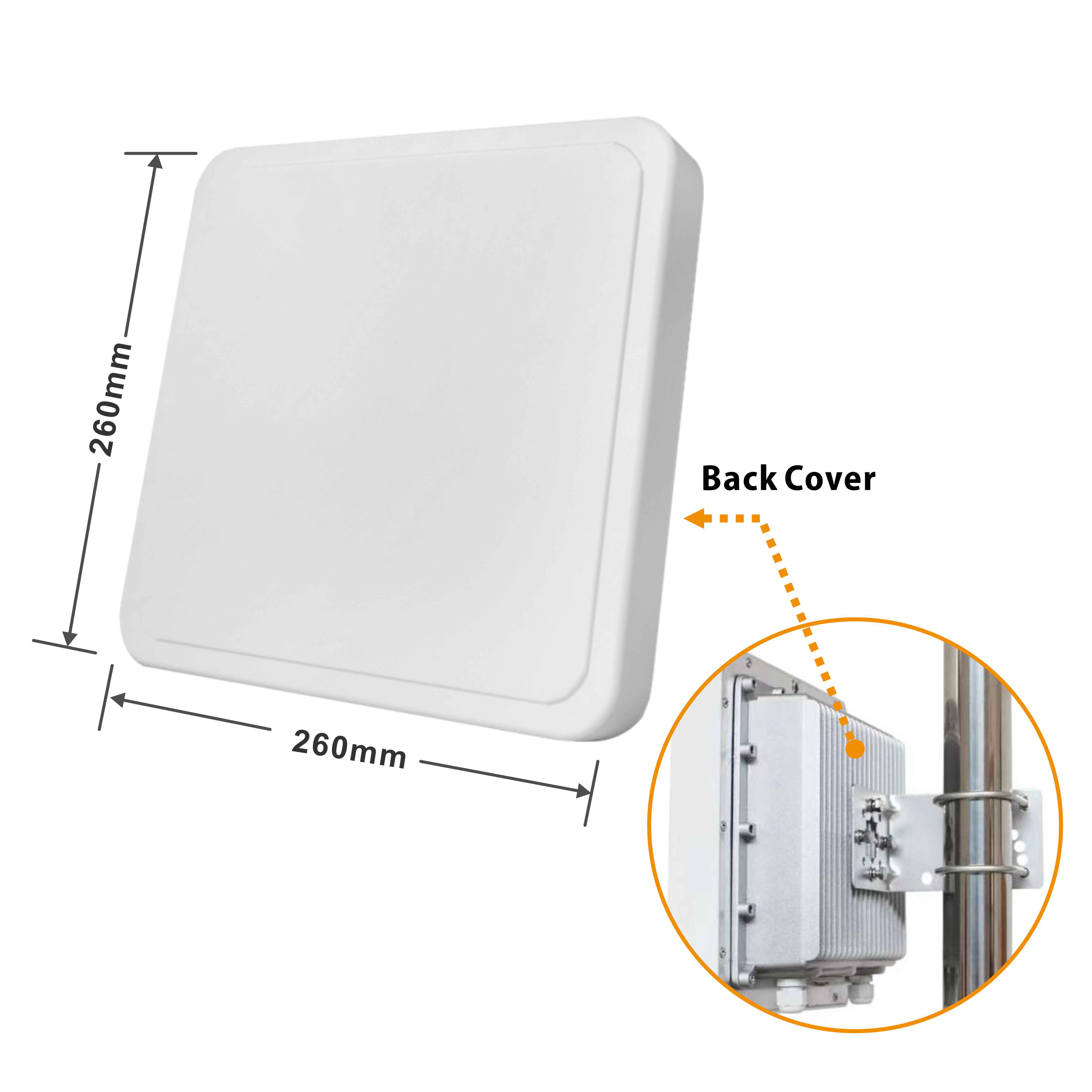

Dimension	260mm×260mm×100mm
Performance Indexs
Work frequency	902~928MHz FCC 865~868MHz CE 920~925MHz (China)
Power output	+10dBm~ 30dBm adjustable @50Ωload Default 30dBm 1dB each step
Frequency stability	Better than±20ppm
Spurious emission	≤-36dBm
ACPR (Adjacent channel power leakage ratio)	First AC≤40dBc;Second AC≤60dBc
Channel occupied bandwidth	≤250kHz
Receive sensitivity	Better than -70dBm
Farthest Reading range	10m depends on antenna and tag type
Farthest Writing range	5m depends on antenna and tag type
Tag reading rate	More than 300times/s (Single tag)
Multi tags reading rate	More than 200pcs
Maximum Storage	100000pcs
Reliability MTBF	260×260×92mm4000h
Maintainability MTTR	30min

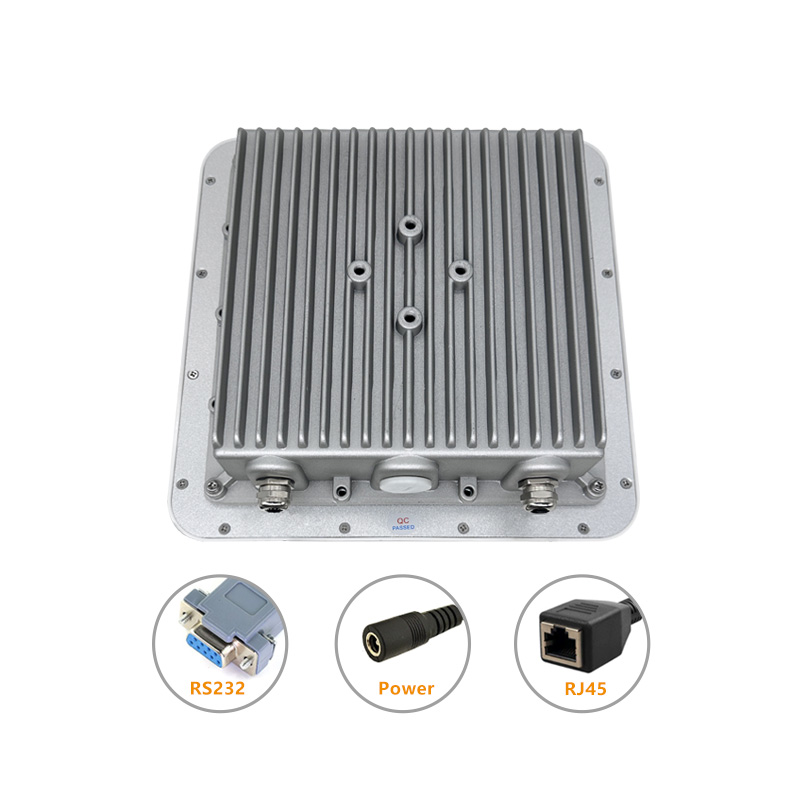

External Interfaces
Standard communication interface	902~928MHz FCC 865~868MHz CE 920~925MHz (China)10/100M Ethernet
Optional interface	RS232, RS485 or Wiegand26/34, USB customizable
Wireless interface	802.11 WIFI (Optional) or 4G LTE (Optional)
Optional I/O interface	2-channel Relay Output, 2-channel 12V level signal output, 2-channel photoelectric isolation input
Power	DC 12V±20%/3A/POE Optional
