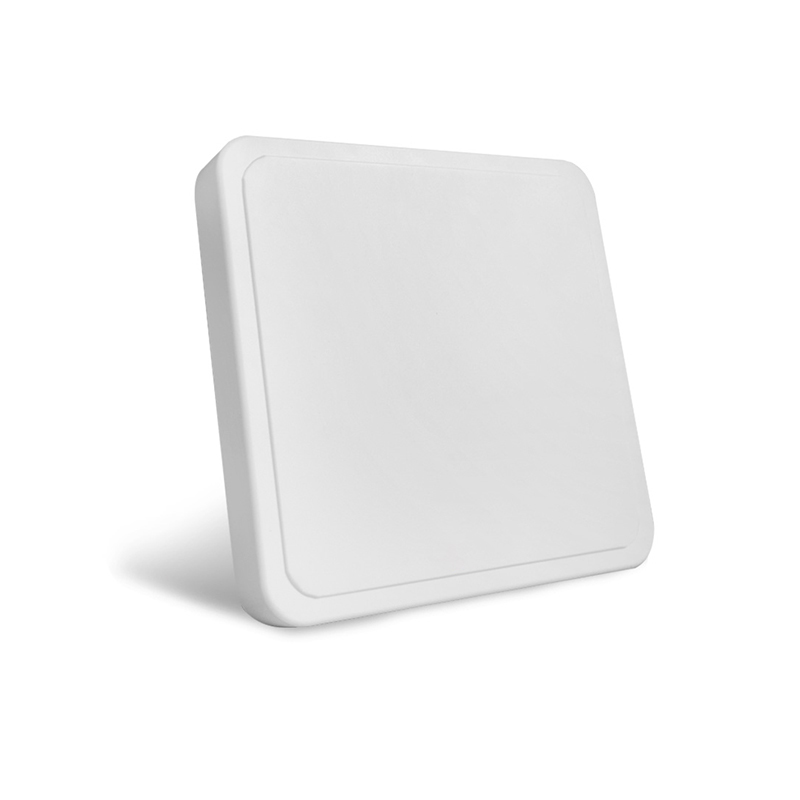

RS-B09CA01 9dBi Circular Polarization UHF RFID Antenna

RS-B09CA01 is 9dBi circular polarization UHF RFID antenna, suitable for UHF RFID applications, such as entrance guard, warehouse management, logistics and retail item management.

Enquiry

Parameters

Electrical Specifications
Frequency	902MHz～928MHz
Gain	9dBi
H side HPBW	70°
E side HPBW	70°
Polarization	Circular Polarization
VSWR	≤1.3:1
Impedance	50±1Ω
Connector Type	N-Female (one input port)
Mechanical Specifications
IP Rating	IP67

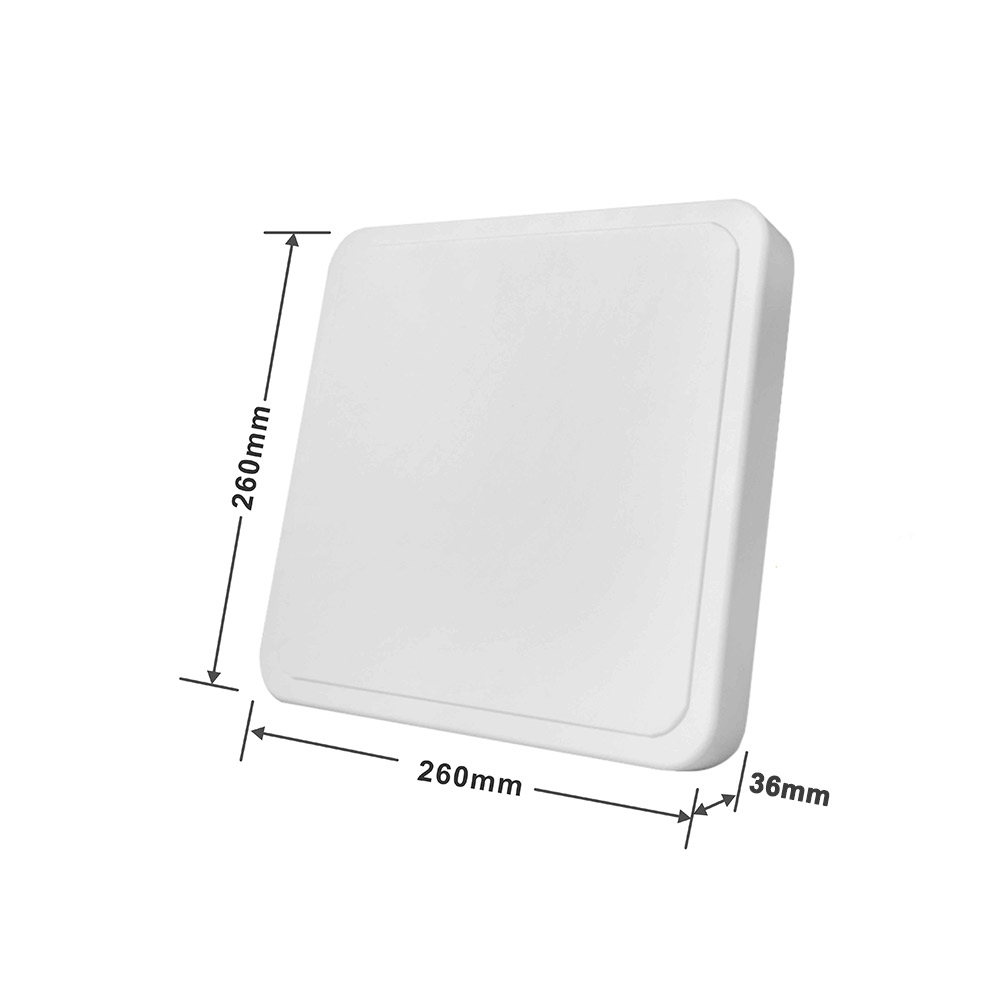

Dimension	260×260×36mm
Weight	0.91kg (bracket excluded)
Radome material	Engineering plastics ASA, aluminum
Radome colour	Milk-white
Operating Temperature	-40℃~+85℃
Storage Temperature	-40℃~+85℃

Electrical Properties

It is a general antenna for UHF RFID applications with high gain and low VSWR.

Mechanical Properties

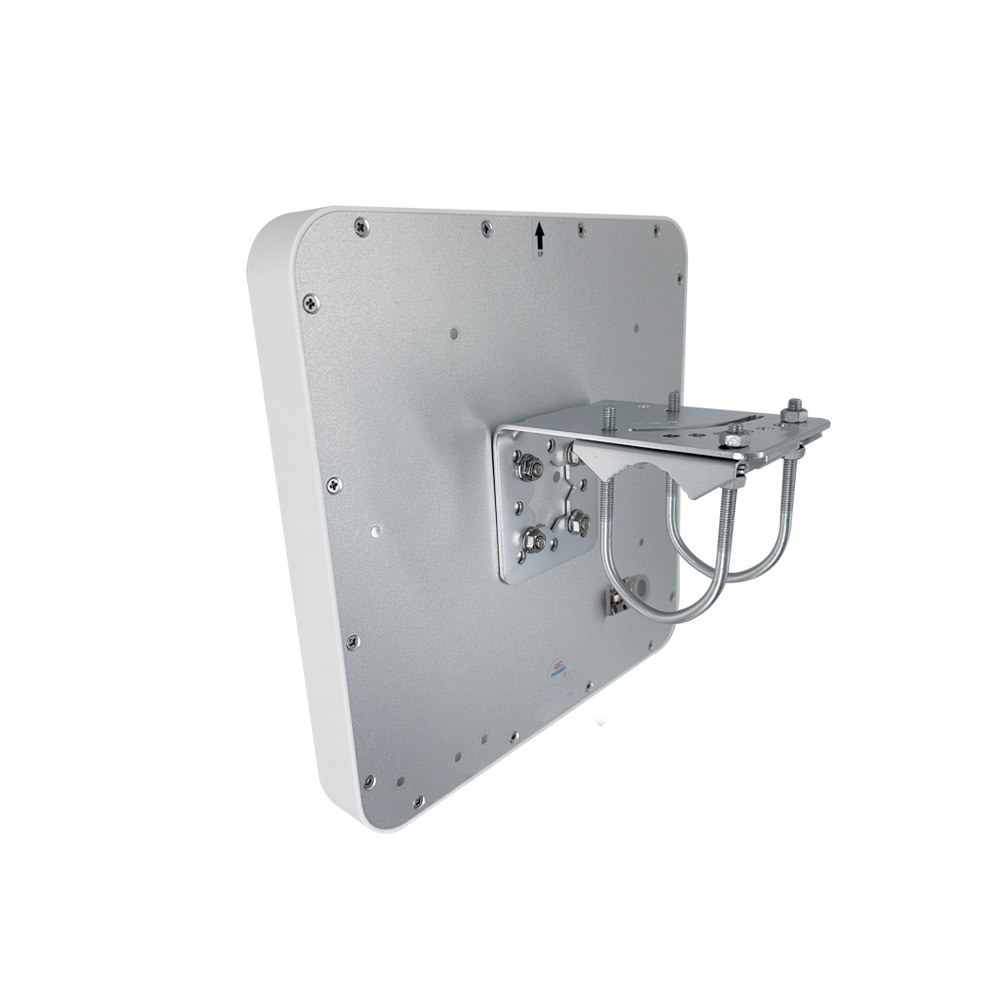

pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

Applications

access control, warehousing, logistics, retail and other UHF RFID application fields.

Radiation Pattern
