RS-PT07 UHF RFID High Temperature Metal Tag-RuiSing Technology Co., (HK) Ltd.

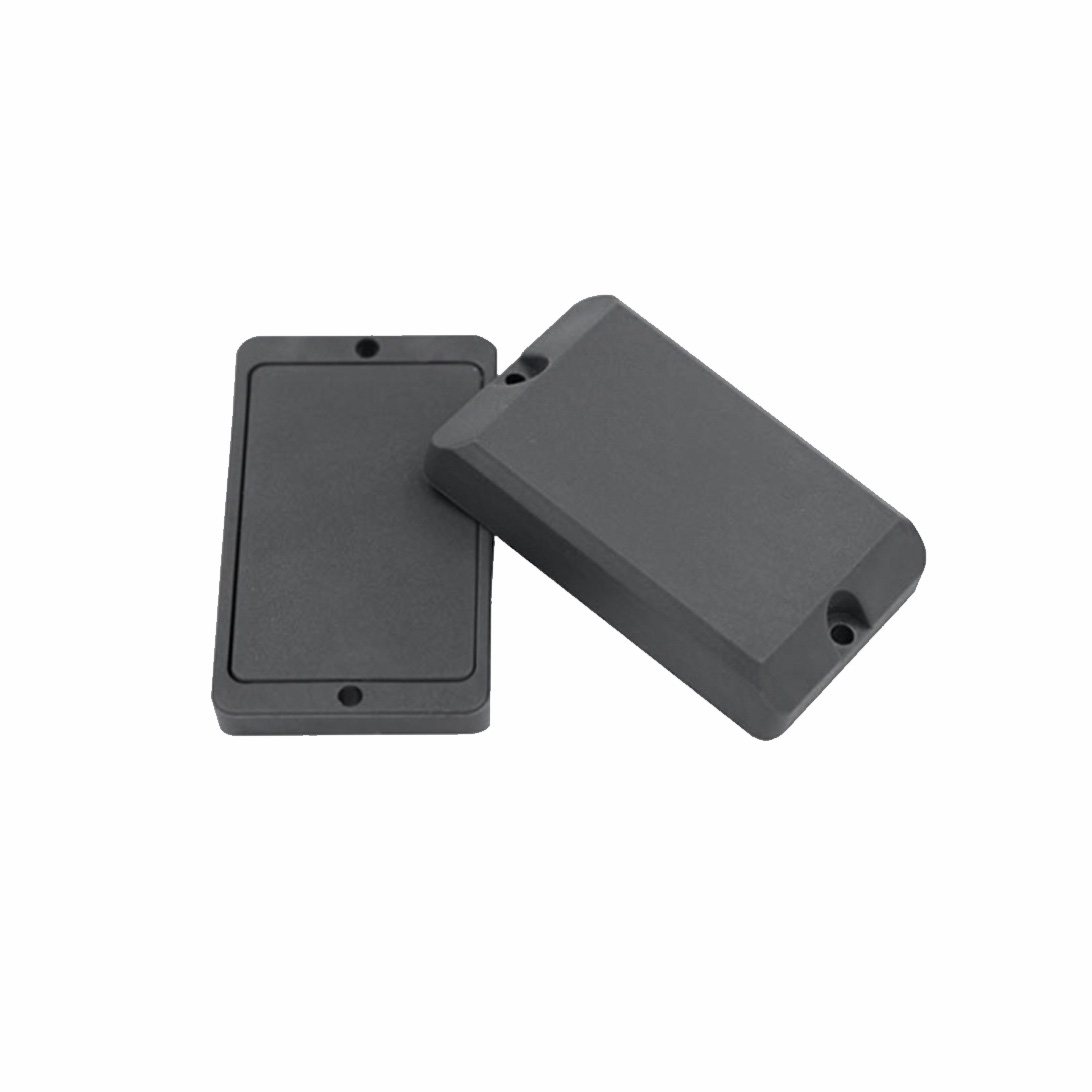

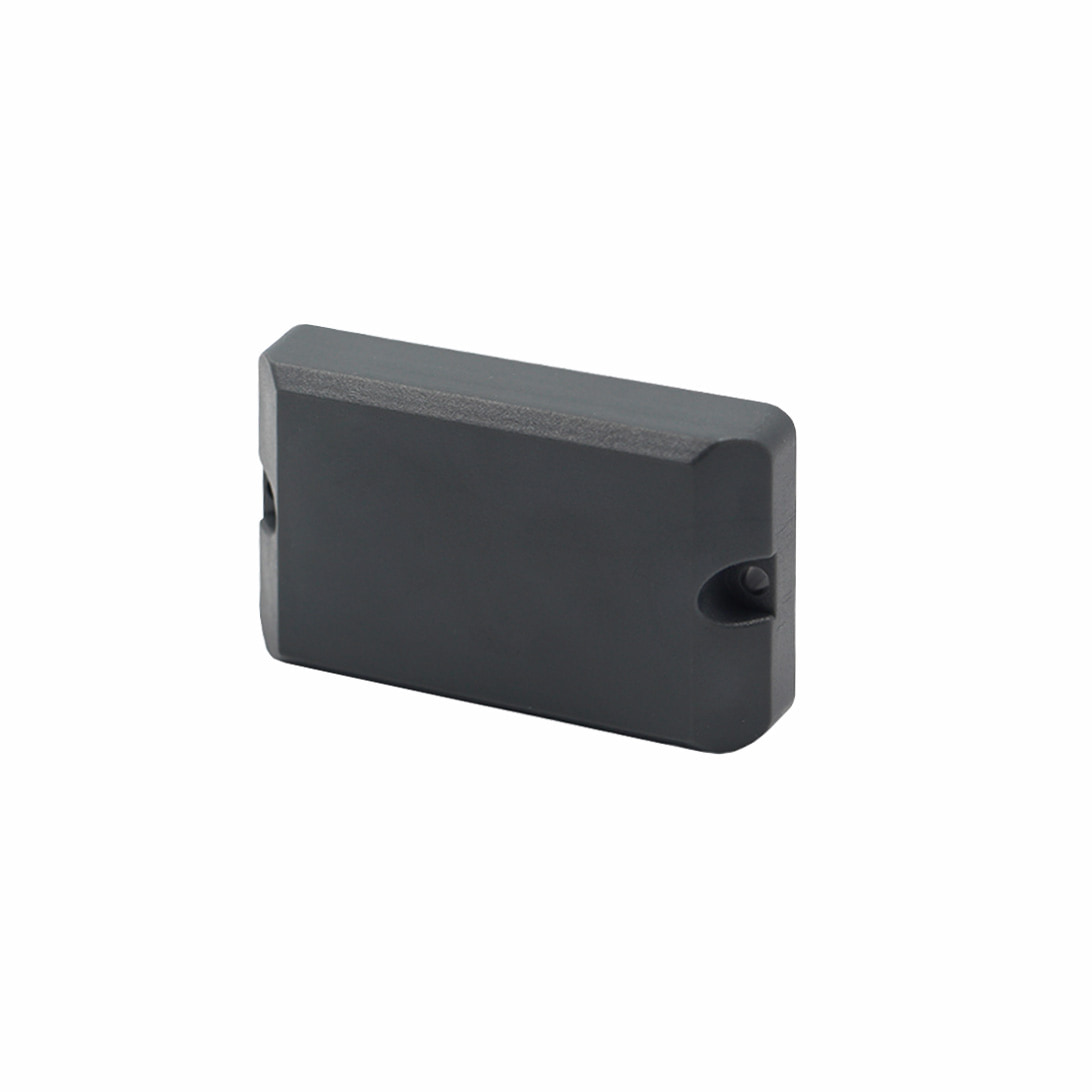

RS-PT07 UHF RFID High Temperature Metal Tag

RS-PT07 UHF RFID high temperature metal tag is specially designed for metallic asset tracking under outdoor or extremely harsh environments.Attached on metal with long reading distance,mainly used for asset management heavy industry, metallic asset tracking, oil & gas & mining,automatic production line, warehouse shelf,container tracking,etc.

Enquiry

Parameters

Physical Features
Material	Engineering Plastics

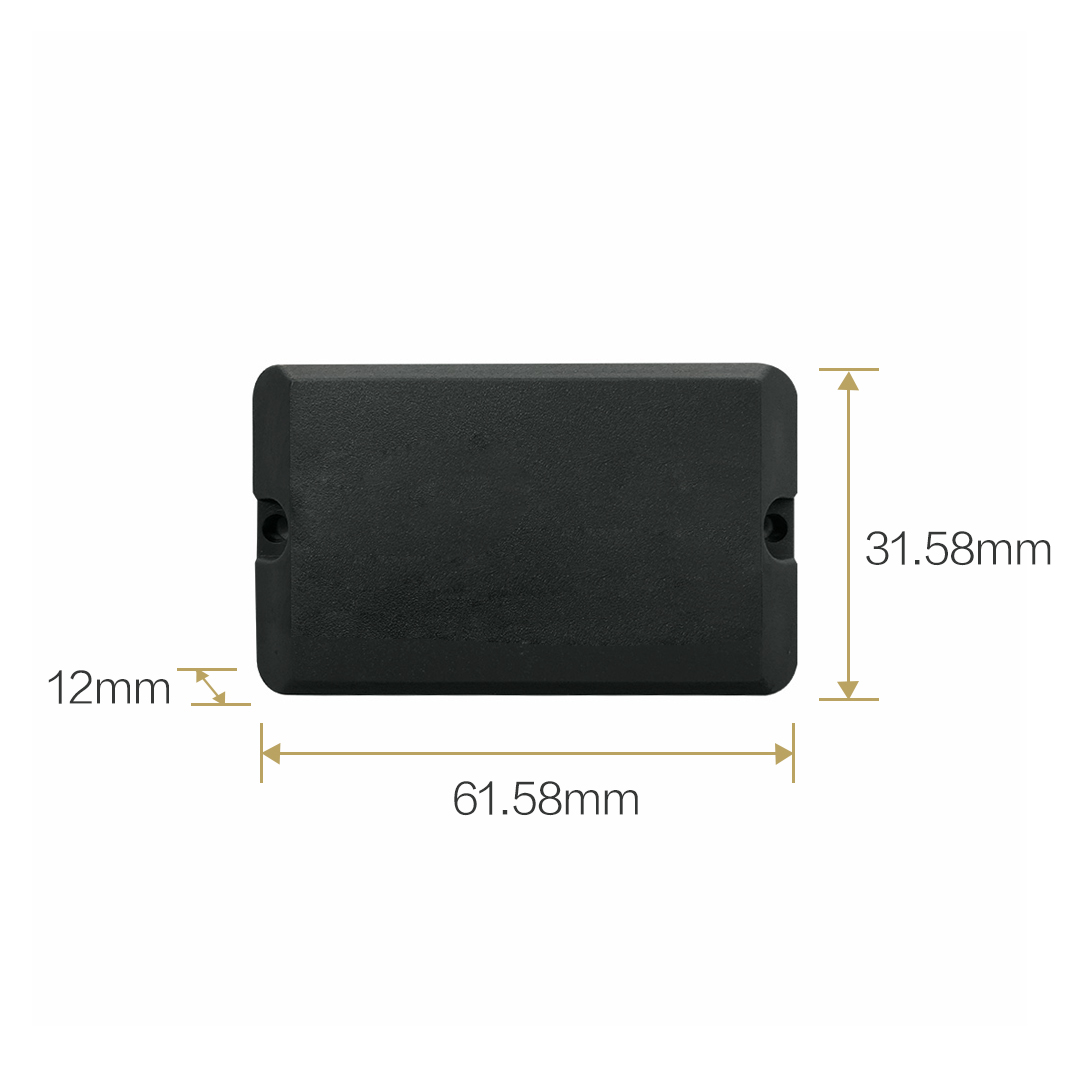

Dimensions	61.58×36.58x12mm
Color	Dark Gray & Light Gray
Weight	20.5g
Working Temp	-40~ +85℃
Survive Temp	-40~+85℃
IP Rating	IP68
Humidity	98% Non-condensing
RFID Features
RFID Standard	ISO/IEC 18000-6C (EPC Gen2)
Chip Type	Impinj Monza R6P
EPC Memory	128(96) bits
User Memory	32(64) bits

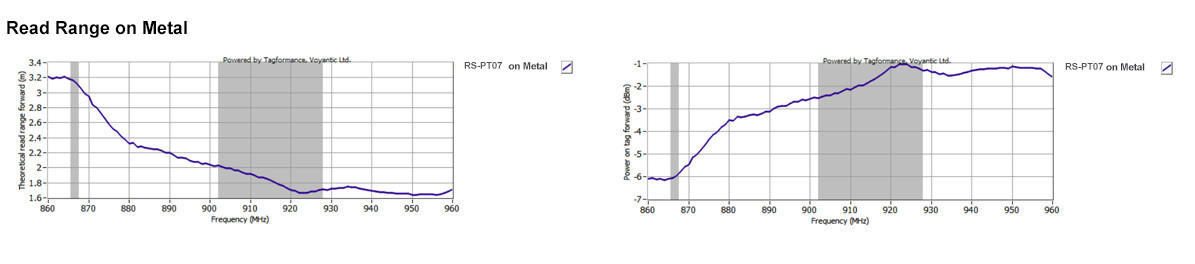

Read Range(2W ERP FCC)	3.2m
Other Features
Data Storage	> 10 years
Re-write	100,000 times
Installation	3M adhesive,Screw,Magnet
Customization	Logo, barcode/QR code, number printing, encoding, design,etc
Package	100pcs/bag
Application	● Oil & Gas & Mining ● Industry equipment ● Heavy machinery ● Logistics and warehouse, etc

Applications

Our Services

Wondering if our RFID device can work for you? Finding out is simple.

We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
