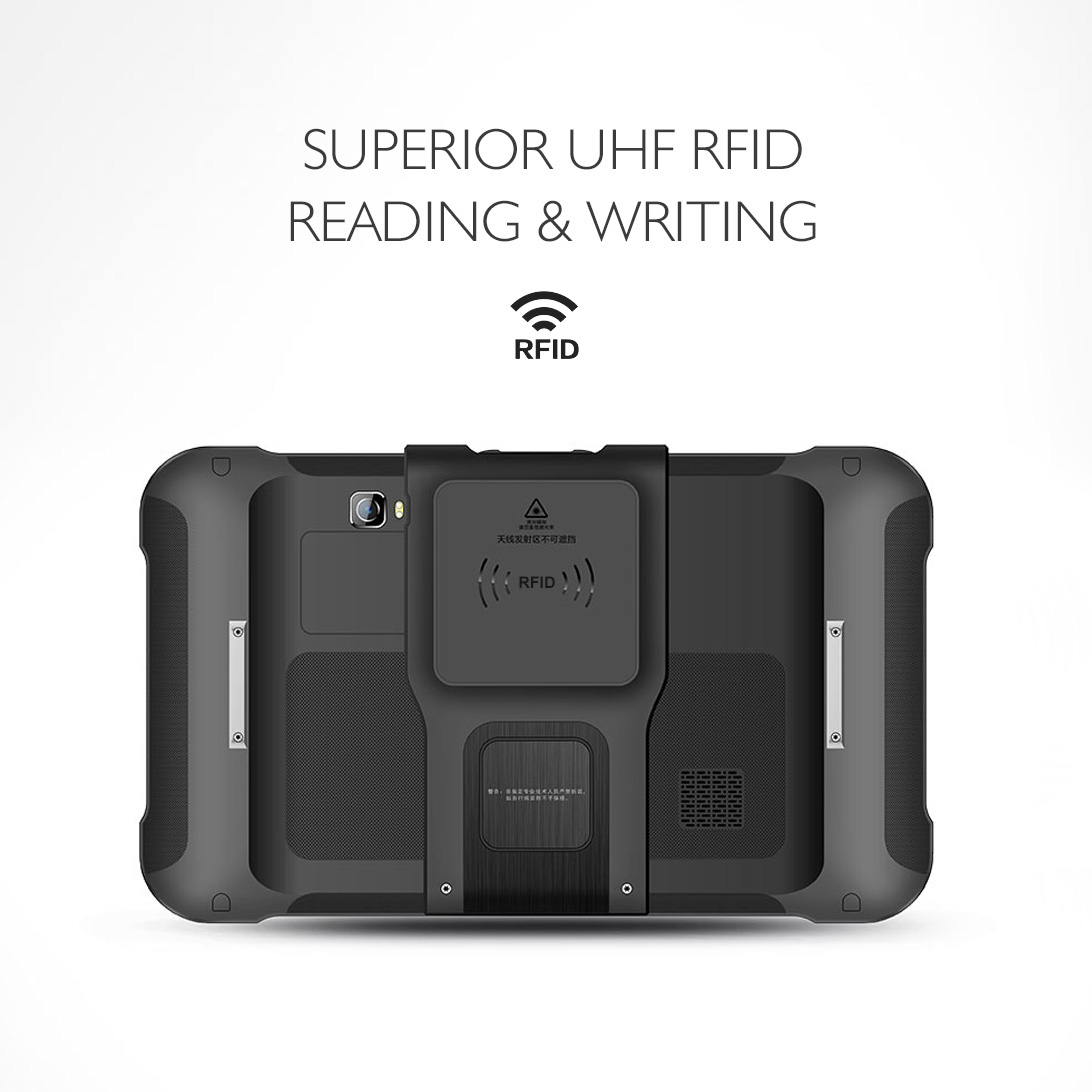

2.45GHz Active RFID |
|
| Frequency |
2.40~2.48GHz |
|
Sensitivity |
-90dBm |
|
Output Power |
Max + 15aBm (Software adjustment 2dBm) |
|
Reading Range |
0-80m (depend on the tag power output) |
|
Identification speed |
150/s |
|
Anti-collision |
150 tags reading simultaneously |
|
Application Software Platform |
Provide development kit of API |
| Performance | |
| CPU | Octa-core, 2.0GHz; GMS&AER |
| RAM+ROM |
4GB + 64GB |
| Expansion | Supports up to 256 GB Micro SD card |
| Operating System | Android 13 |

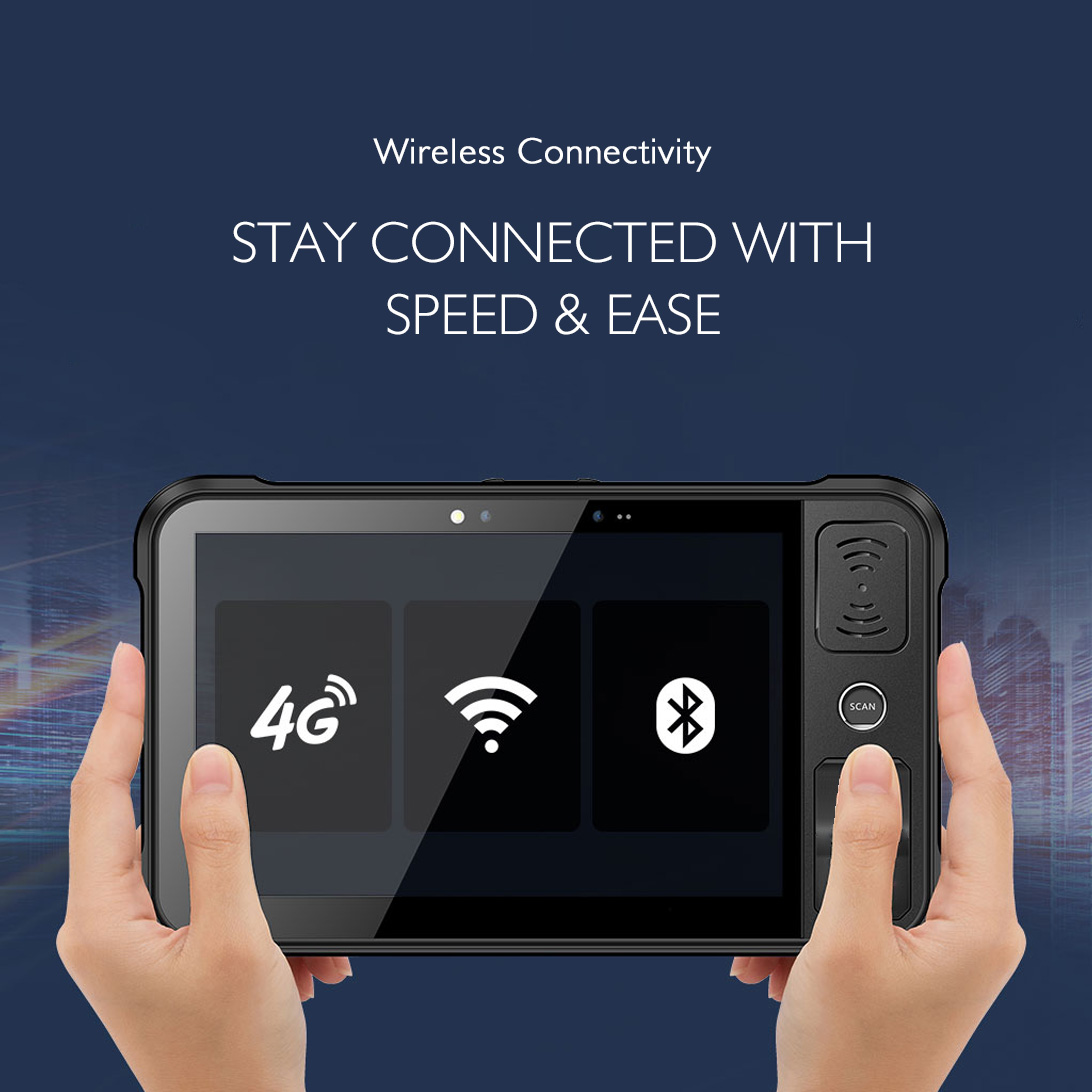

| Communication | |
| WLAN |
Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G (channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128, 132,136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPIPSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAPGTC, etc. |
| WWAN | 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28 |
| Bluetooth | Bluetooth 5.1 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
| Physical Characteristics | |
| Dimensions | 250.8 x 152.0 x 15.0 mm (for standard version) |
| Dimension |
700g |
| Display | 8'' IPS LTPS 1920 x 1200 |
| Touch Panel |
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
|
Power |
Main battery: Li-ion, rechargeable, 8700mAh Standby: over 500 hours Continuous use: over 10 hours ( depending on user environment ) Charging time: 5-7 hours ( with standard AC adaptor and USB cable ) |
|
Expansion Slot |
1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots |
|
Interfaces |
USB 2.0 Type-C, OTG |
|
Audio |
Speaker, microphones |
|
Keypad |
1 front key , 1 volume key , 1 power key , direction key (optional) |
|
Sensors |
Gravity sensor; gyroscope; geomagnetic sensor; light / proximity sensor |

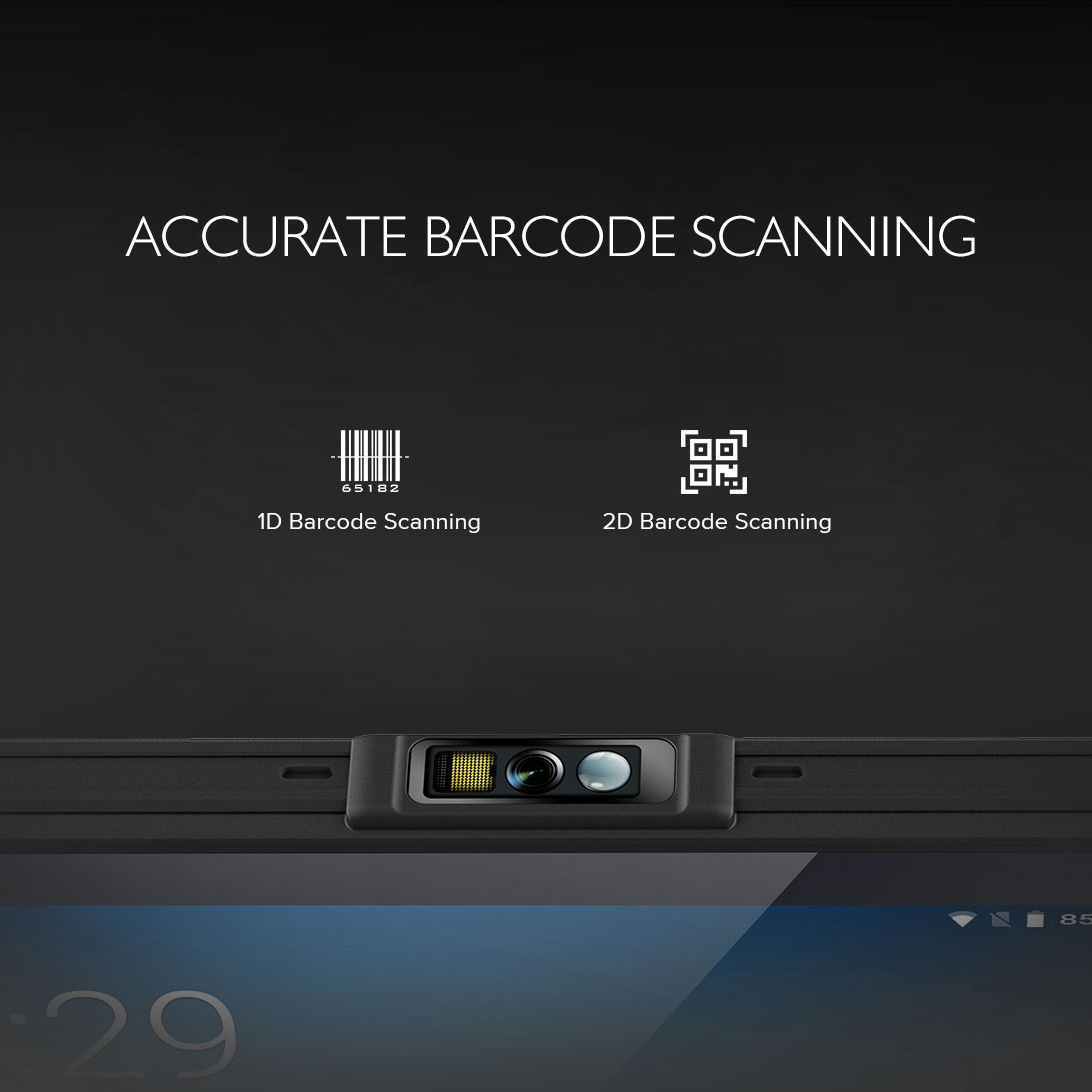

| Barcode Scanning (optional) | |
| Scan engine | Zebra SE4710; Honeywell HS7 |
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.
|

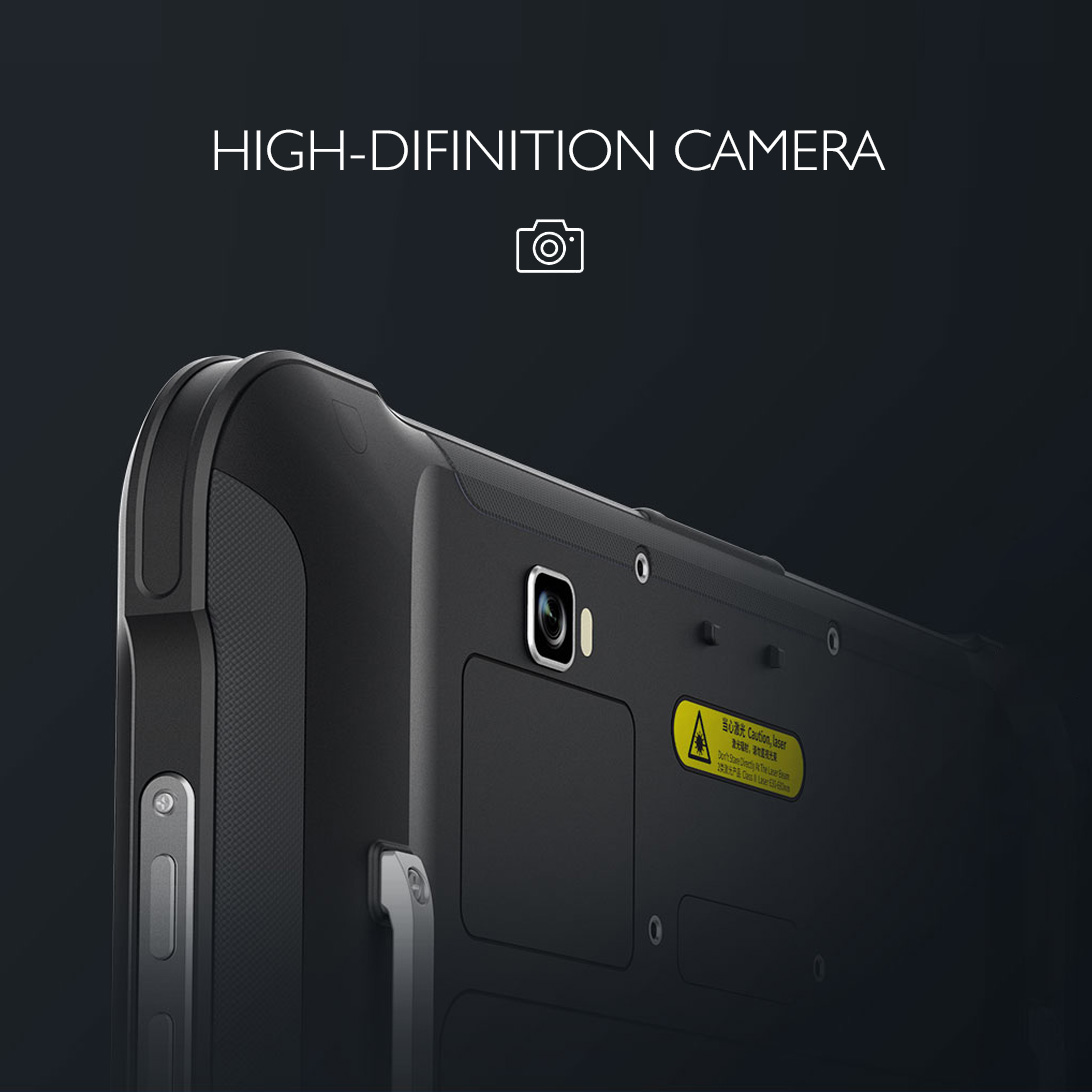

| Camera | |
| Camera |
13 MP Autofocus with flash
|
| Front Camera |
5 MP
|
| User Environment | |
| Operating Temp. |
-20 °C to 50 °C
|
| Storage Temp. | -40 °C to 70 °C |
|
Humidity |
5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range |
|
Tumble Specification |
500 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing |
IP65 per IEC sealing specifications
|
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| NFC | |
| Frequency |
13.56 MHz
|
| Protocol |
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
|
| Chips |
M1 card (S50, S70), CPU card, NFC tags, etc.
|
| Range |
0-4 cm
|
