RS-AT02 2.45 GHz Active RFID Card Tag-RuiSing Technology Co., (HK) Ltd.

RS-AT02 2.45 GHz Active RFID Card Tag

RS-AT02 2.45 GHz active RFID card tag operates in 2.4GHz ISM frequency band, featured in 80m long range distance reading, low battery consumption to assure long battery life, it is mainly used for personal management, construction filed employee tracking , school students time attendance system, asset tracking system etc.

Enquiry

Functions

Exclusive low- power consumption, longer working time
Permanent 4-byte basic ID
Active operating model( read only)
Up to 80m reading distance, suitable for people tracking management

Parameters

Permormance Indexes
Working Frequency	2.40GHz~2.48GHz, default value is 2.48GHz
Signal Interval	1s (customizable from 100ms-60s)
Communication Speed	1Mbps
Reading Distance	0~120m (open area)
General Parameters
Operating Temperature	-20℃~+60℃
Storage Temperature	-25℃~+65℃
Humidity	5%~95% (non-condensing)
Battery Life	4 years life

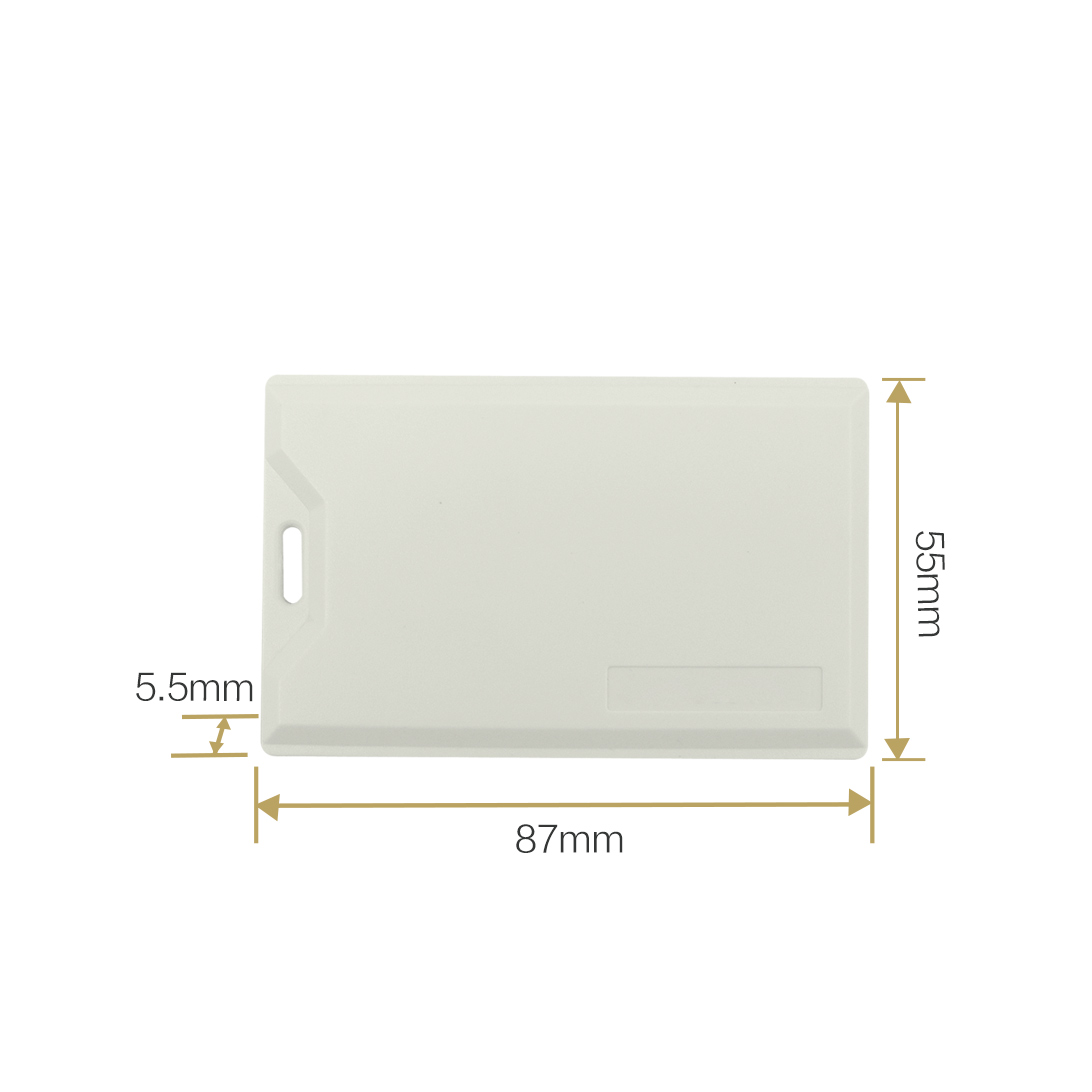

Dimensions	87 × 55 × 5.5mm
Weight	25g
IP Rating	IP65
