RS-AT03 LF Wake-Up Active RFID Tag-RuiSing Technology Co., (HK) Ltd.

RS-AT03 LF Wake-Up Active RFID Tag

RS-AT03 2.45 GHz active and LF wake-up RFID tag operates in 2.4GHz and 125 KHz frequency band, featured in 80m long range distance reading, low battery consumption to assure long battery life, it is mainly used for personal management, construction filed employee tracking , school students time attendance system, asset tracking system etc.

Enquiry

Functions

Exclusive low- power consumption, longer working time
Permanent 4-byte basic ID
Passive operating model( read only)
Up to 80m reading distance, suitable for people and items tracking management

Parameters

Permormance Indexes
Working Frequency	2.40GHz~2.48GHz
Signal Interval	1s
Output Power	-6dBm±1.0dBm
Reading Distance	0~100m (after wake up by the activator)
General Parameters
Operating Temperature	-10℃~+50℃
Storage Temperature	-20℃~+60℃
Humidity	5%~95% (non-condensing)
Battery Parameters	550mAh
Working voltage	DC 2.4V~3.0V
Battery Life	2 years life (related with the operating mode and output power)
Working Current	Standby＜100uA; Transmitting＜20mA(peak)

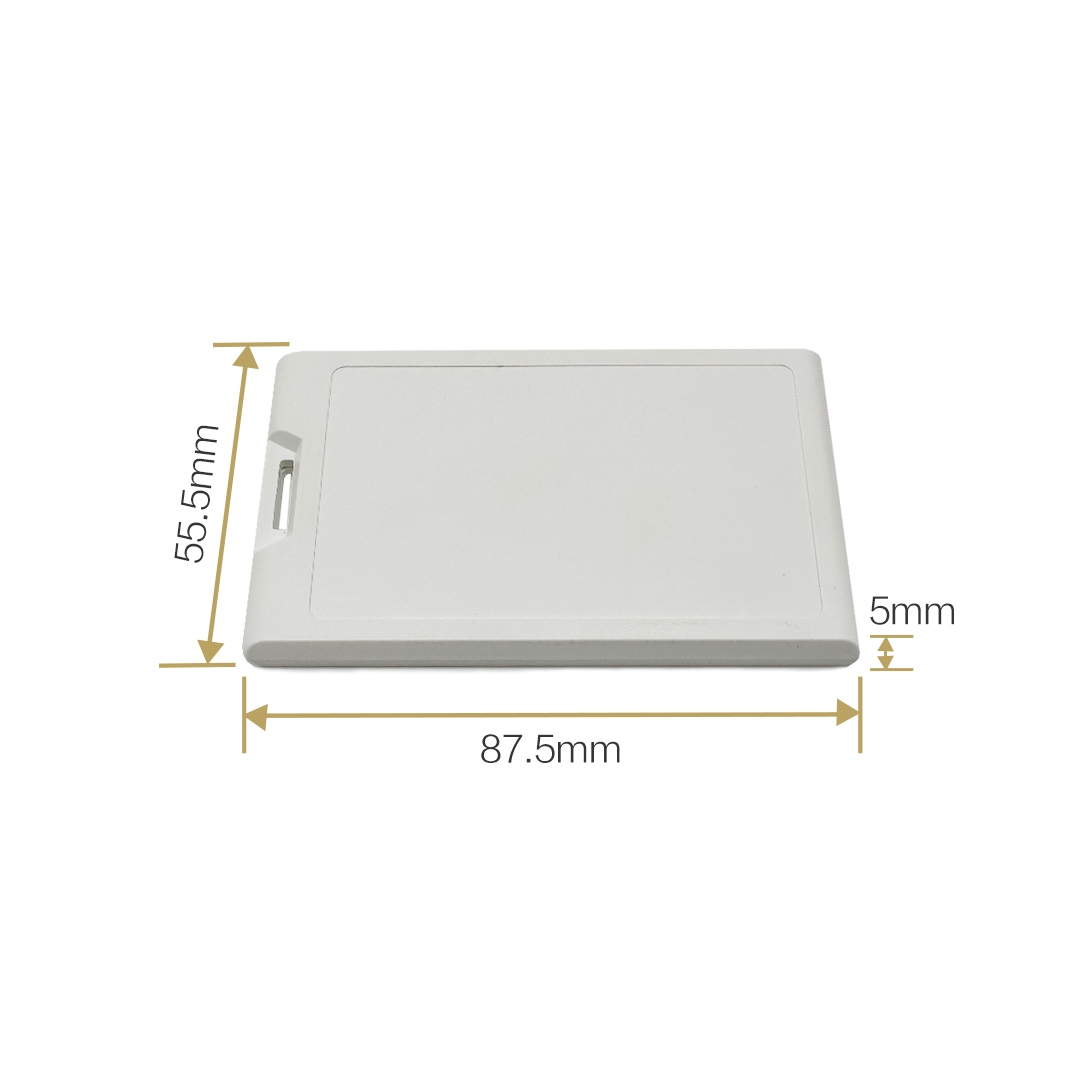

Dimensions	87.5 ×55.5 ×5.0mm
Weight	50g

Our Services

Wondering if our RFID device can work for you? Finding out is simple.

We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
