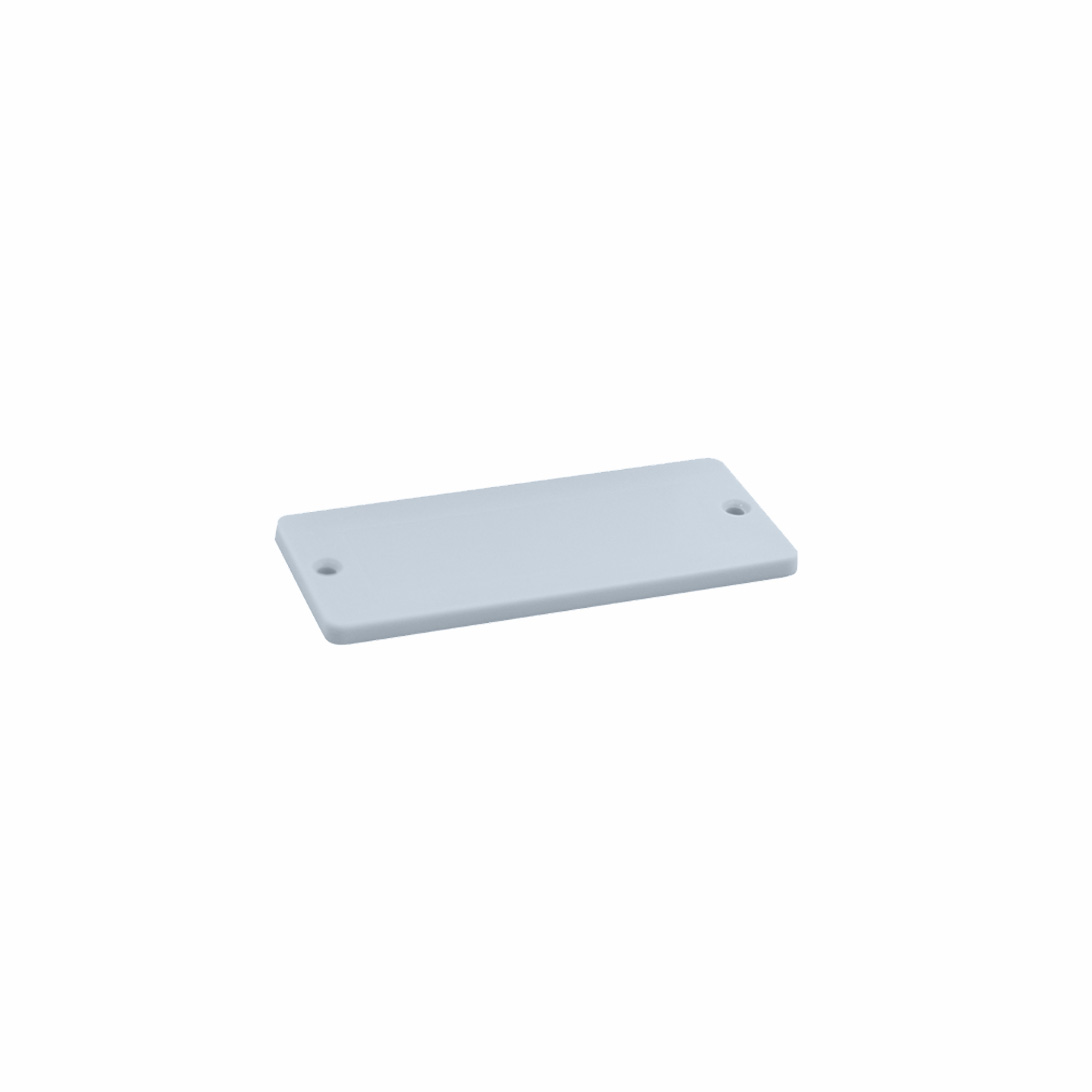

Parameters
| Physical Features | |
| Material | Engineering Plastics |

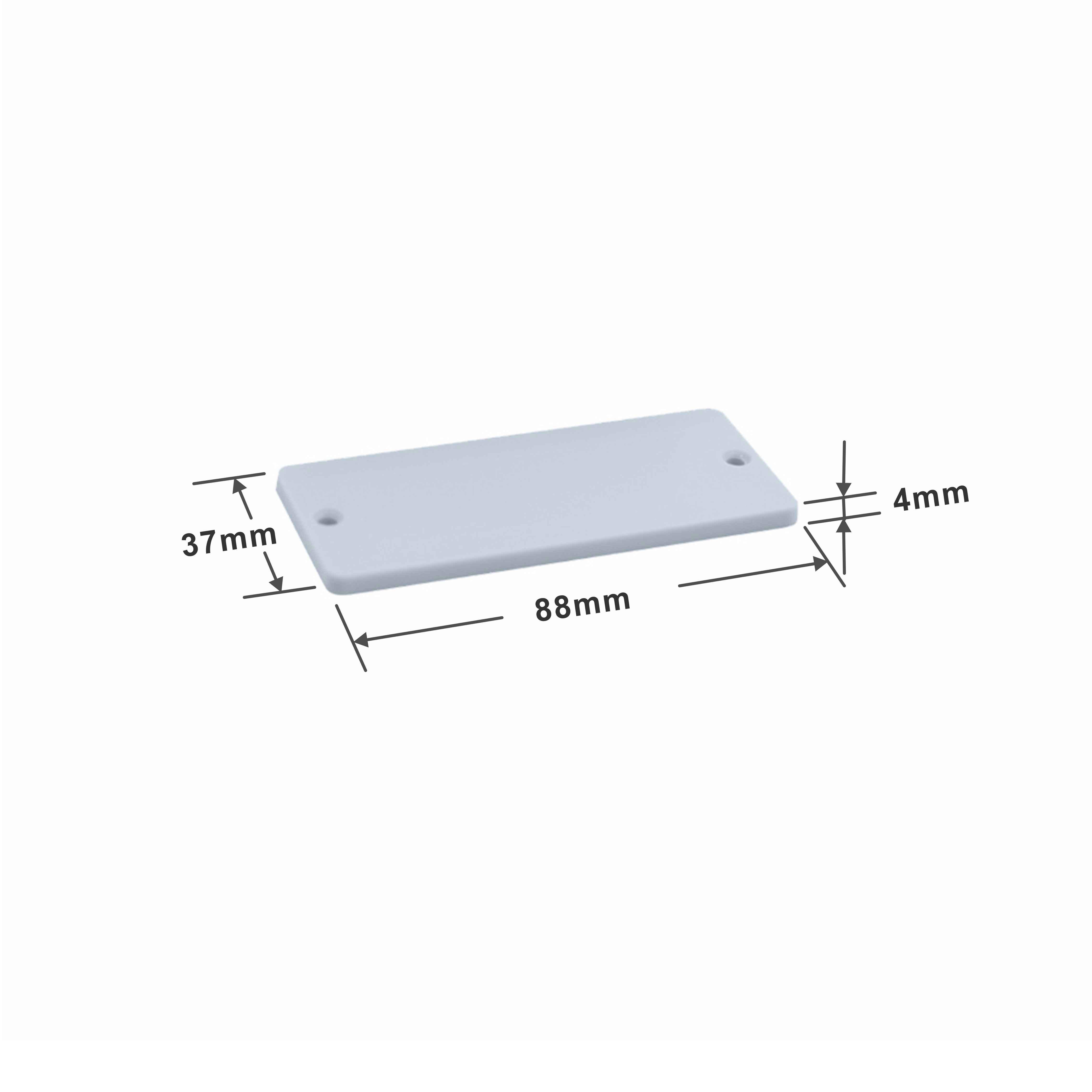

| Dimensions | 88×37×4mm |
| Weight | 10.5g |
| Working Temp | -40~ +85℃ |
| Survive Temp | -40~+85℃ |
| IP Rating | IP68 |
| Humidity | 98% Non-condensing |
| RFID Features | |
| RFID Standard | EPC Global UHF Class 1 Gen 2/ ISO 18000-6C |
| Chip Type |
Impinj Monza R6P |
| EPC Memory | 128(96) bits |
| User Memory |
32(64) bits |

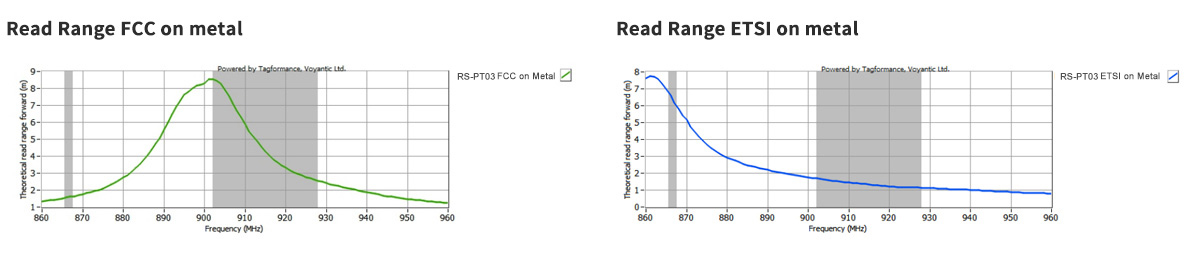

| Read Range(2W ERP FCC) | 0~8.5m |
| Read Range(2W ERP ETSI) | 0~7m |
| Other Features | |
| Data Storage | > 10 years |
|
Re-write |
100,000 times |
| Installation |
3M adhesive, Screw, Magnet, Cable
|
| Customization | Printing LOGO,Serial number,Encoding,Designing,etc |
| Package | 100 pcs /bag |
| Application |
● Oil & Gas & Mining ● Industry equipment ● Cargo Container Tracking ● Logistics and warehouse, etc |
Applications
Our Services
Wondering if our RFID device can work for you? Finding out is simple.
We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
