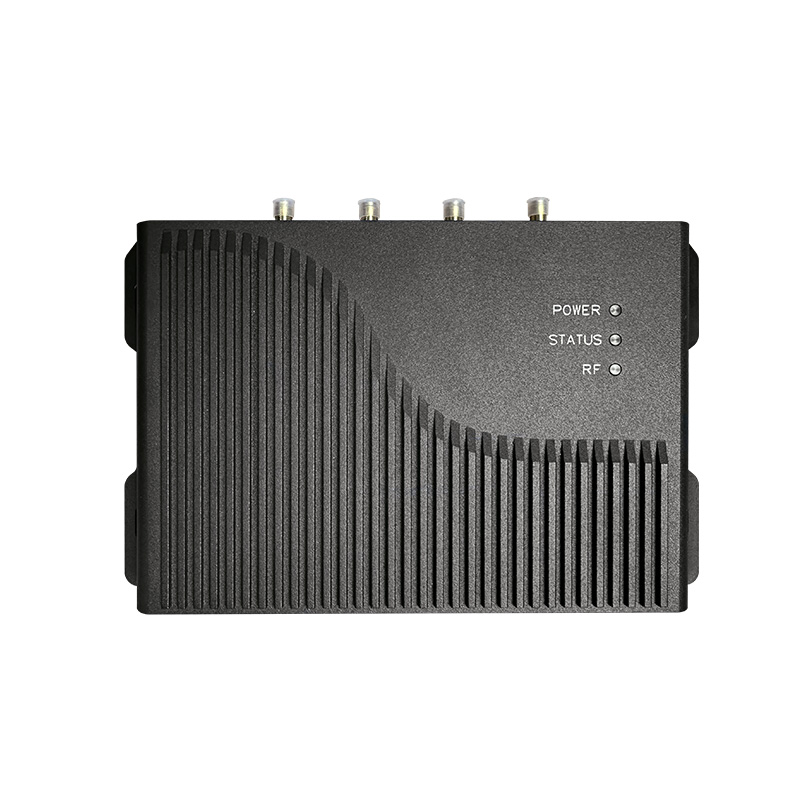

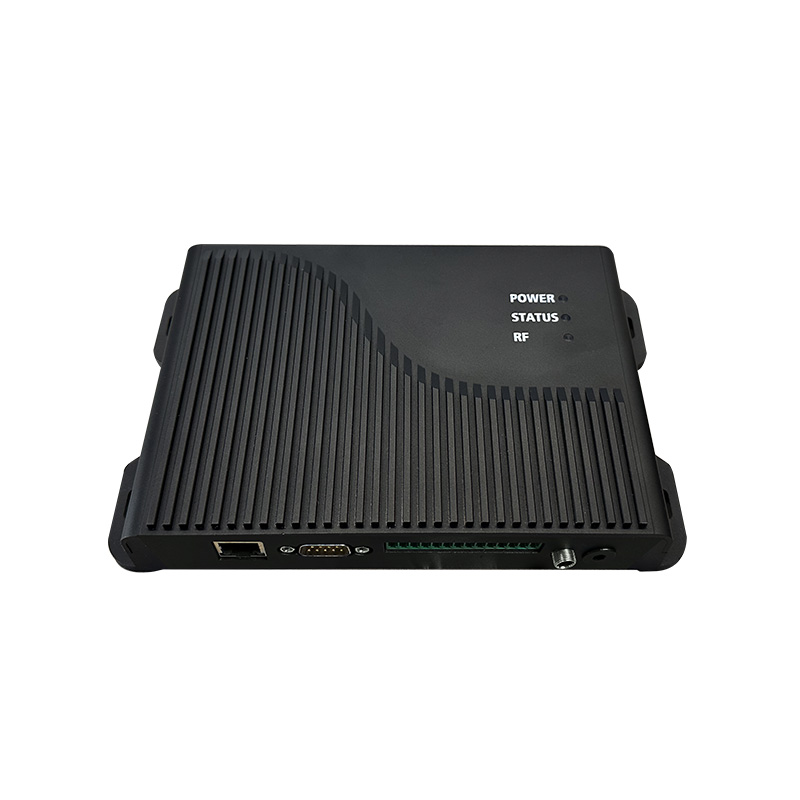

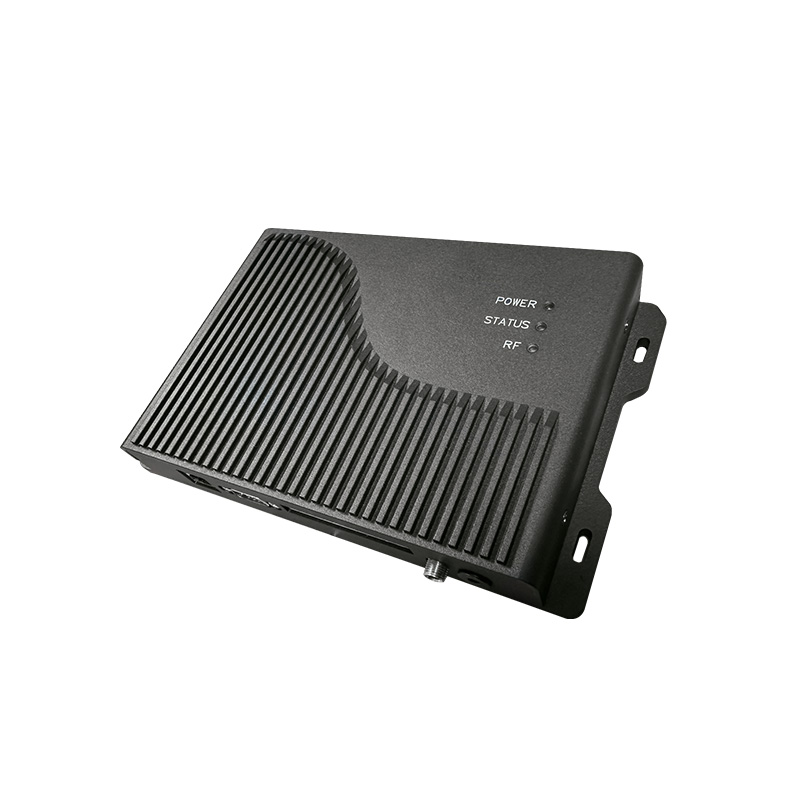

RS-F905 Four-Port UHF RFID Reader

S-F905 is a new designed four port UHF RFID reader with antennas and Impinj E710 chipset, supports up to 25 meters long range reading. It is widely used for asset management, inventory/warehouse management, vehicle ETC management etc.

Enquiry

Feature

Using lmpinj’s latest E710 module.Integrated 4-way SMA radio frequency interface to meet a larger reading range.
The modular design of the whole machine supports a variety of interfaces.
In addition to the existing hardware interfaces, other types can be customized for users to meet the different needs of RFID integration.

Applications

Production line automation data collection
Non-parking fee management
Warehousing and logistics management
Personnel attendance management
Asset tracking management
Container management

Specifications

Electrical Parameters
Frequency	North America: 902MHz~928MH Europe: 865MHz~868MHz China: 920MHz~925MHz
Working	FHSS/ fixed frequency, set by software
Protocol	EPC C1 G2 (ISO18000-6C)
Output Power	5dBm~33dBm Stepping by 1dBm
RF interface	4 SMA interfaces
Communicating Interface	RJ45、RS232 or RS485
Communicating Interface Optional	4G/WIFI
Power	DC 9~24V、PoE (optional)
Input /Output	2 relay outputs; 2 optical isolation inputs
Receive Sensitivity	-86dBm
Reading Distance	Up to 25 meters (related to tag and antenna configuration)

Mechanical Specifications
Operating Temperature	-20℃~+60℃
Storage Temperature	-30℃~+70℃
Protecting Rating	IP54 (With the use of a waterproof housing, can reach IP65)
Storage Humidity	5%~95% non-condensing

Certification
Compliance To	CE、FCC、EMC(EN 50121-4、EN 61000-6-4)、EN 60950-1、OFCA

Our Services

Wondering if our RFID device can work for you? Finding out is simple.

We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
