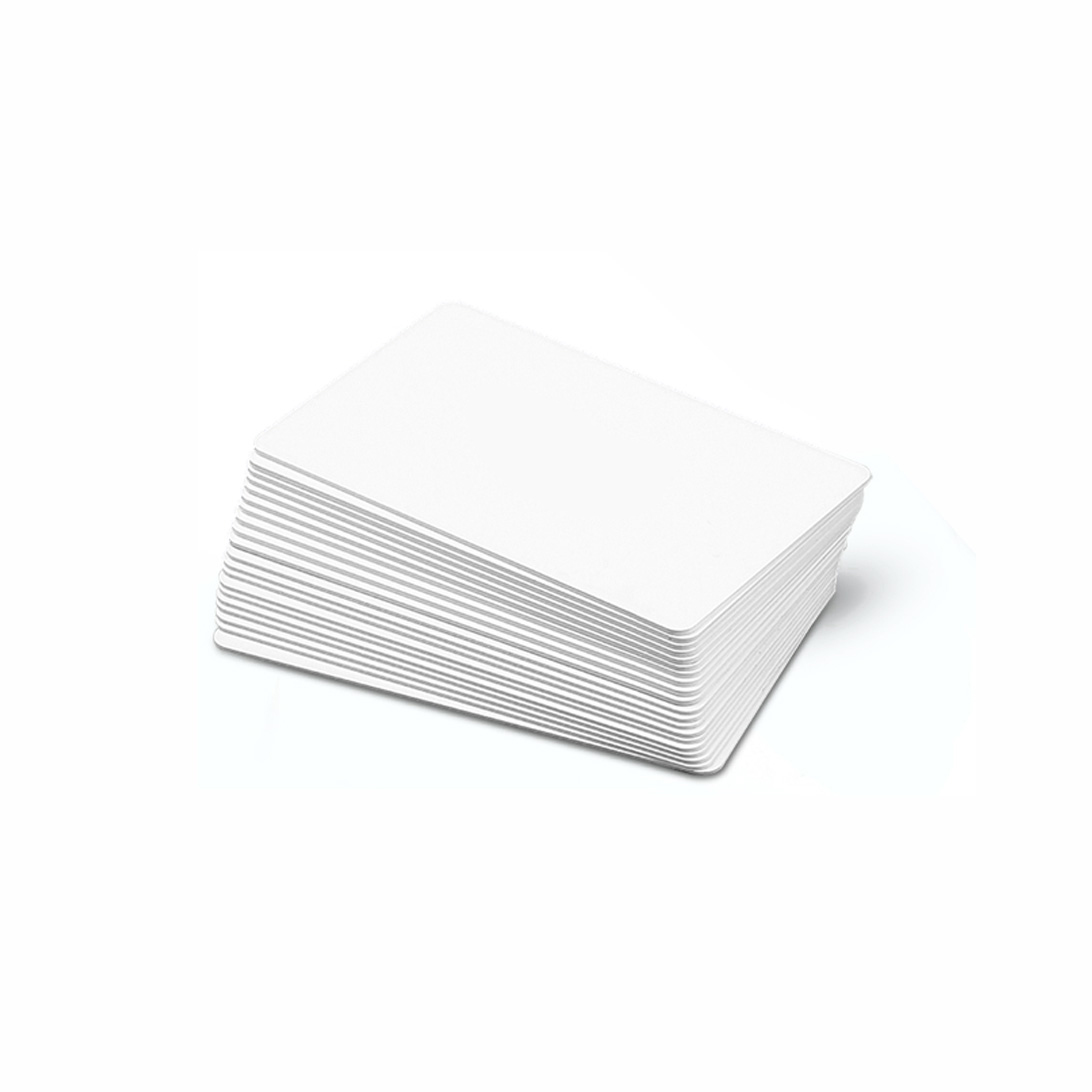

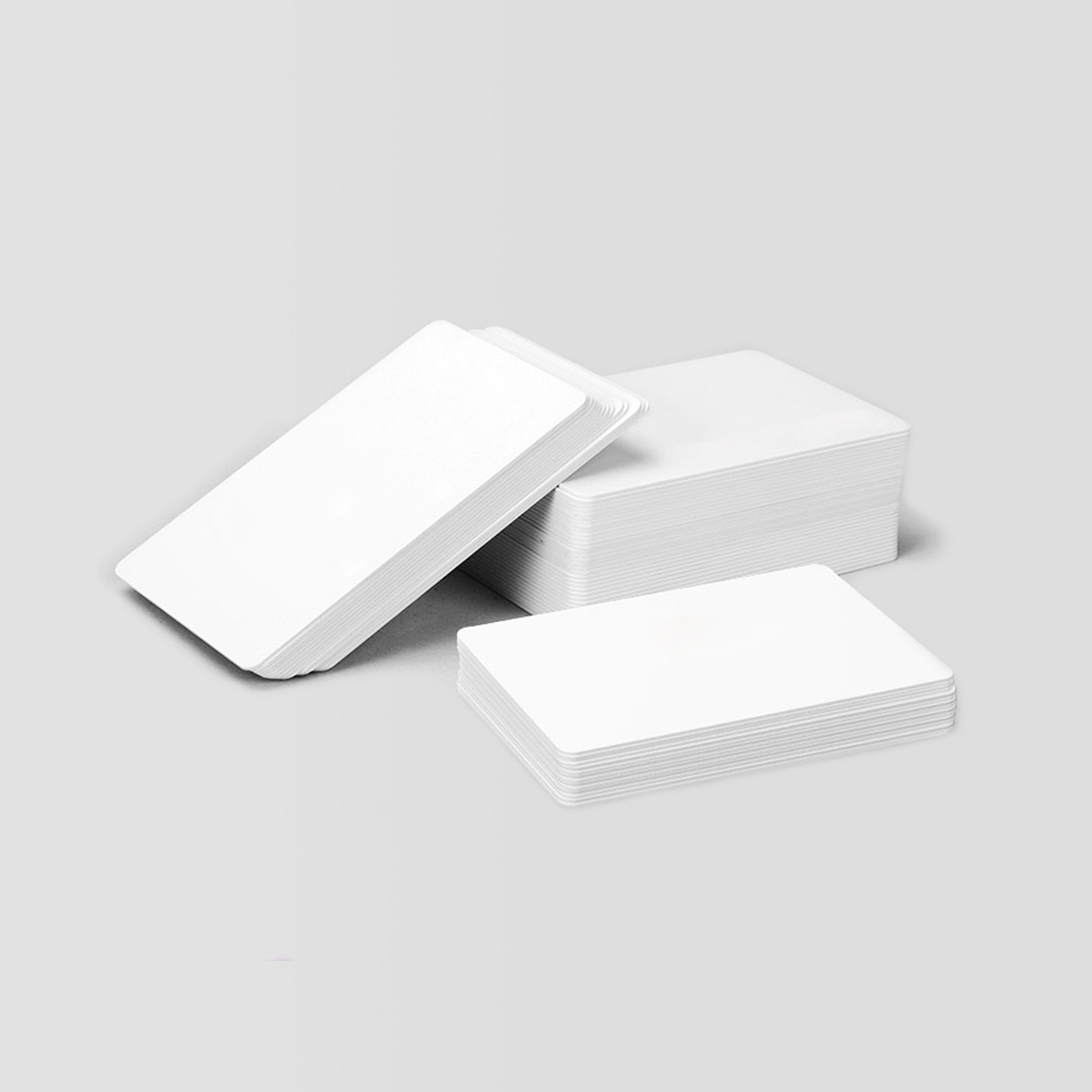

RS-PT10 RFID UHF EPC Gen2 PVC/PET Card

RS-PT10 UHF RFID PVC/PET Card is compatible with EPC C1G2 and ISO 18000-6C standards, developed based on independent intellectual property rights. The label is suitable for global frequency band working settings, and the linear polarization design has ultra-high reading rate in specific directions, high sensitivity for label recognition, and high anti-counterfeiting performance. It has a unique identification code (TID code) and is widely used in book and archive management, road automatic toll collection, access control cards, membership cards, city one card cards, and other ID cards

Enquiry

Parameters

Physical Features

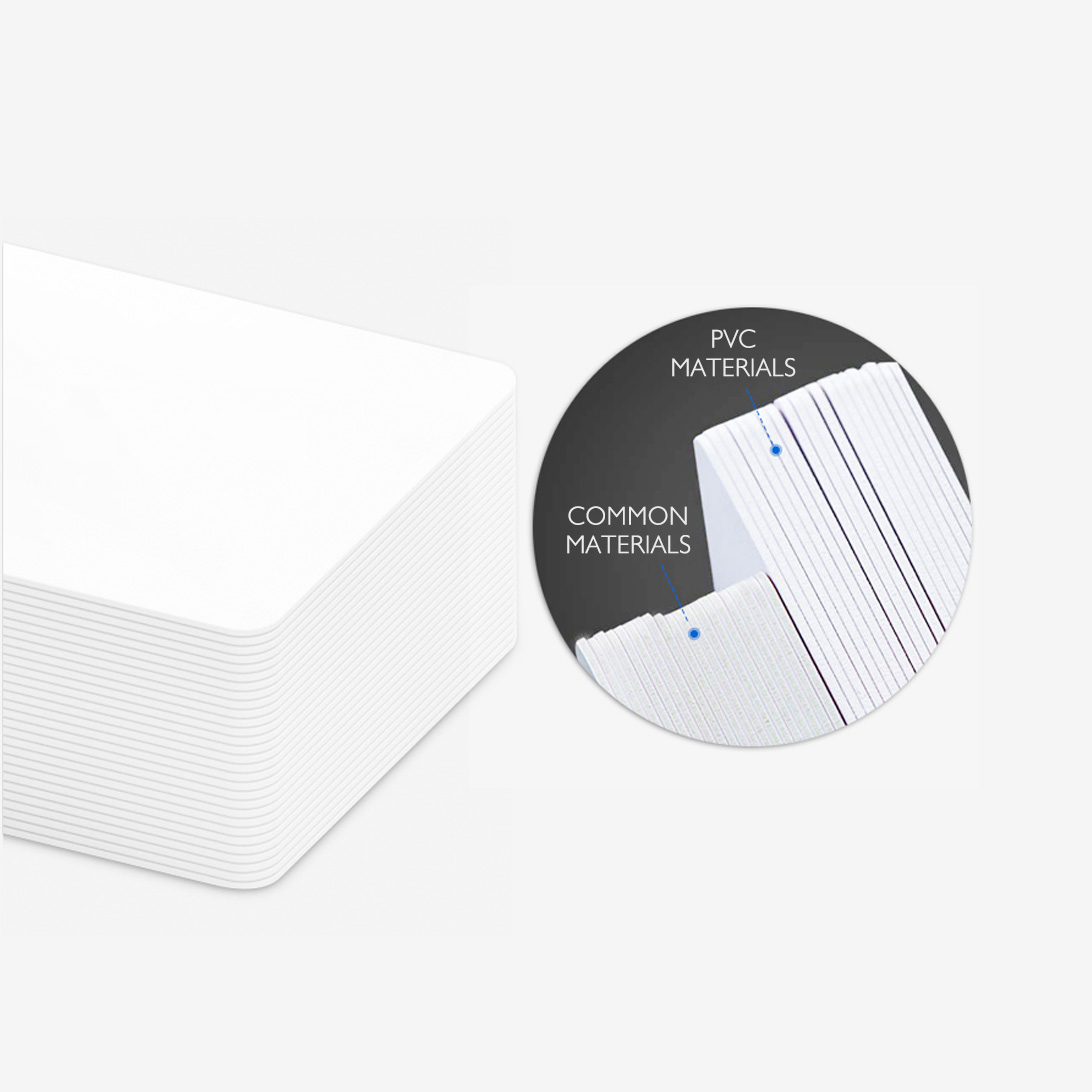

Material	PET / PVC

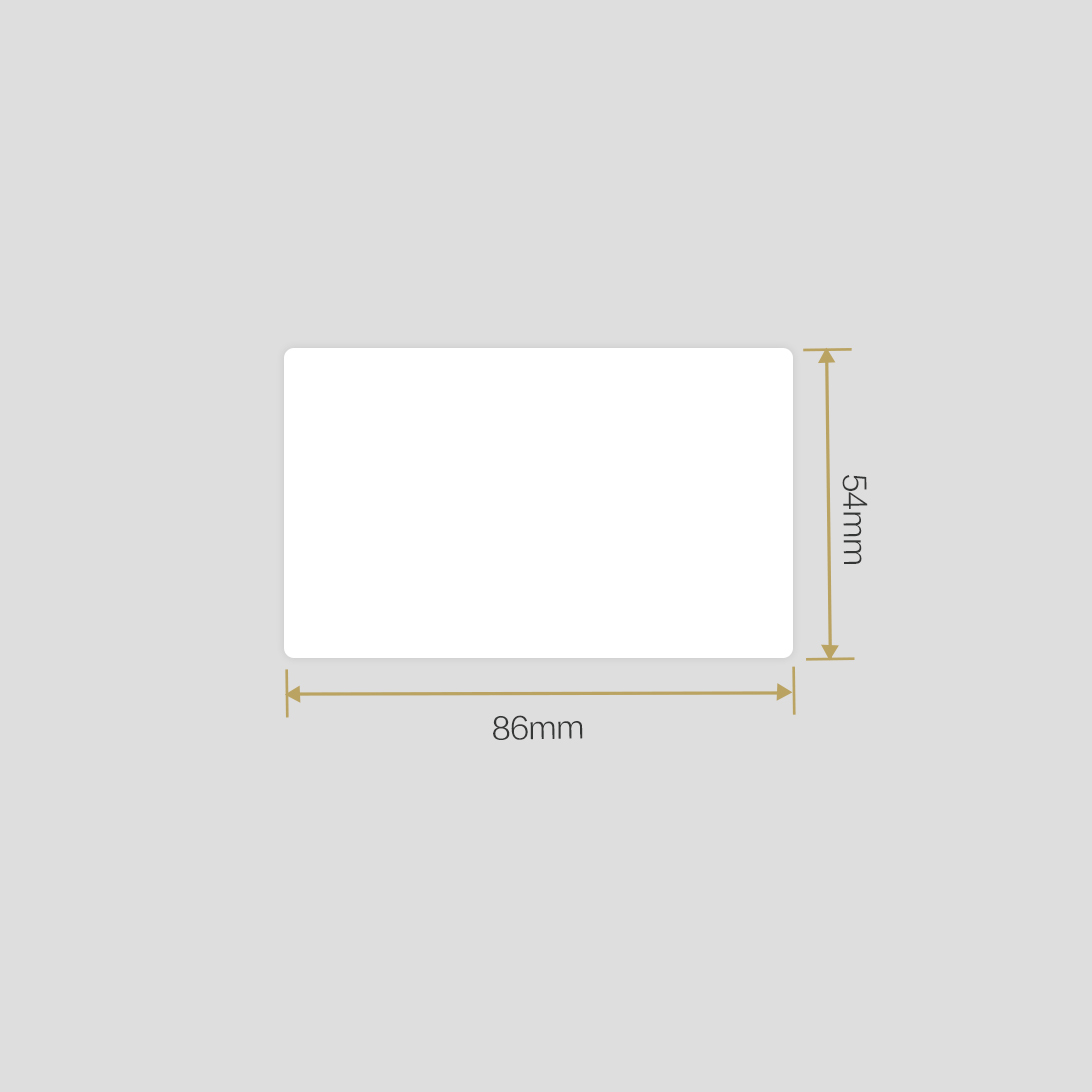

Dimensions	86×54x0.84mm
Environment	-25~ +65℃
Survive Temp	-40~+85℃
IP Rating	IP66
RFID Features
Operation	Passive
RFID Standard	ISO/IEC 18000-6C (EPC Gen2)
Chip Type	NXP Ucode 8
EPC Memory	128 bits
TID	96 bits
Operating Range	14m (depends on different readers)
Other Features
Data Storage	> 10 years
Re-write	100,000 times
Installation	Back glue installation and card holder installation

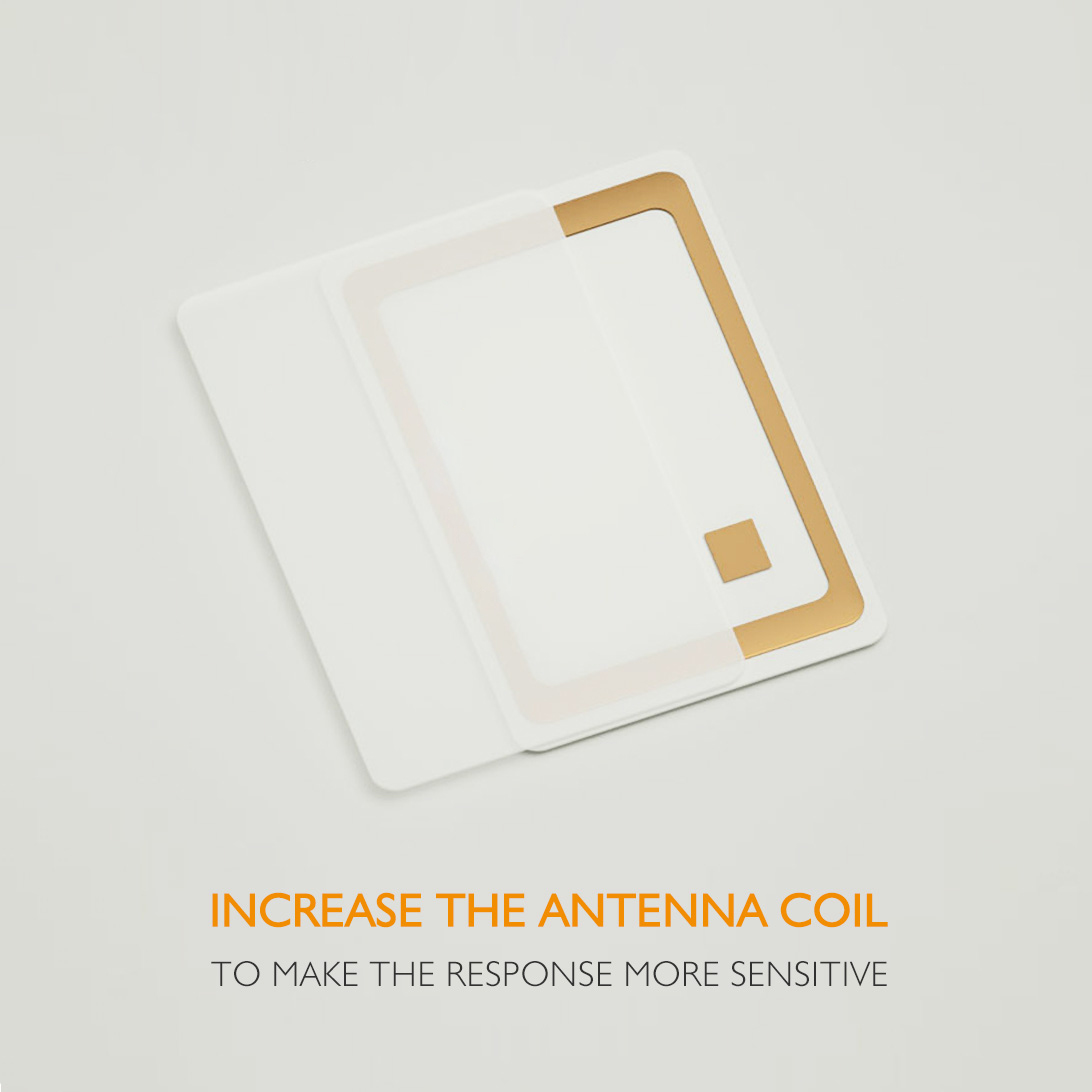

Customization	Logo, barcode/QR code, number printing, encoding, antenna design, etc.
Package	100pcs/box
Application	book and archive management road automatic toll collection access control cards membership cards city one card cards other ID cards

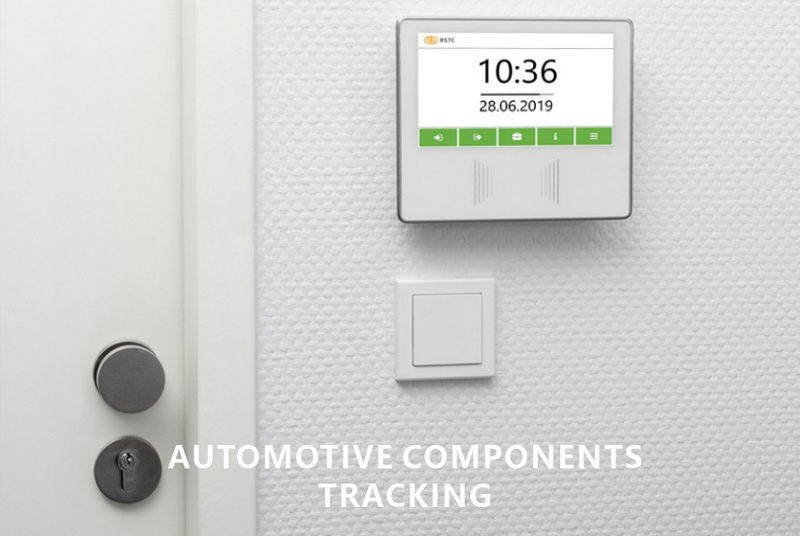

Applications

Our Services

Wondering if our RFID device can work for you? Finding out is simple.

We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
