RS-AE01 125KHz LF RFID Activator-RuiSing Technology Co., (HK) Ltd.

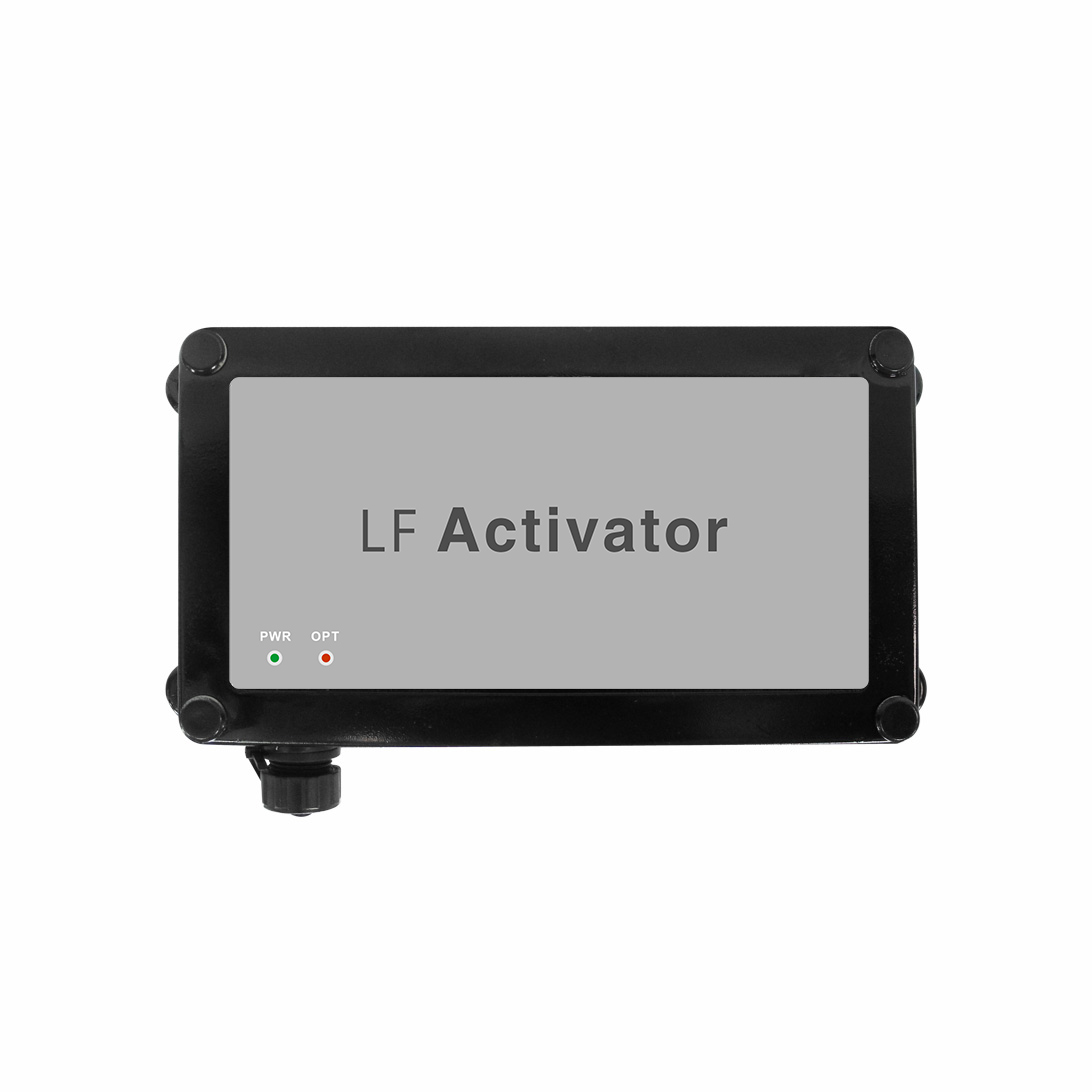

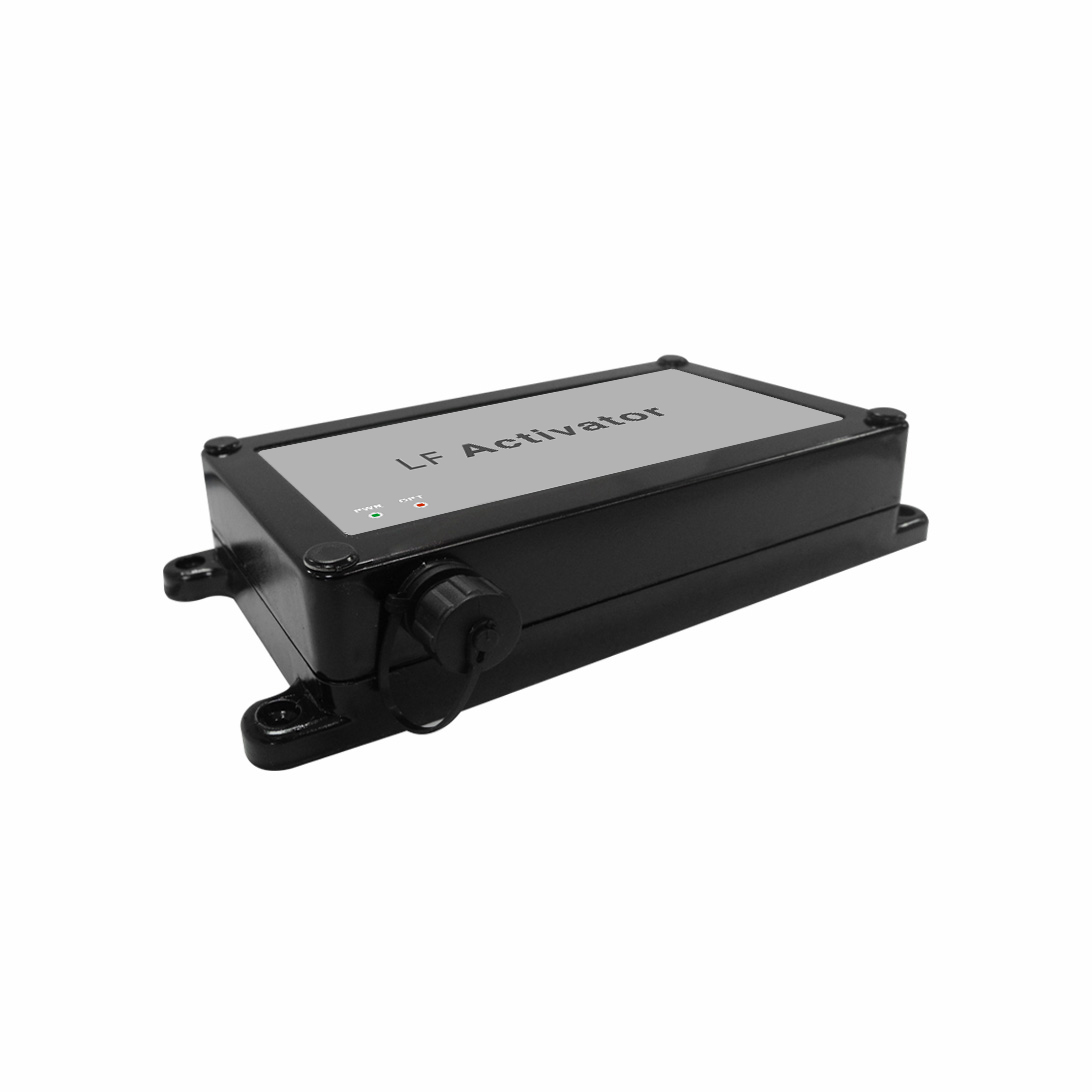

RS-AE01 125KHz LF RFID Activator

RS-AE01 is 125 KHz LF RFID Activator, it works with 2.45 GHz active and 125 KHz LF wake up tag, 2.45 GHz RFID active reader, realize real-time location tracking as such personnel and items location tracking etc project.

Enquiry

Functions

Working on 125KHz±1KHz
Built-in antenna
Activating tag range: <5m (semi-diameter)
Activating distance adjustable wirelessly by software

Applications

Indoor personnel and items realtime location tracking

Parameters

Permormance Indexes
Operating Frequency	125KHz ±1KHz
Modulation Type	Adjustable by software (RS485) or set by hardware
Antenna Output Power	<5W
Activator Id	8 bit
Tag Activating Area	1-6m (Activating radius adjustable)
General Parameters
Operating Temperature	-20℃~+55℃
Storage Temperature	-40℃~+80℃
Humidity	5%~95% (non-condensing)
Working Voltage	DC 12V (compatible with DC 9-18V)
Power Consumption	5W

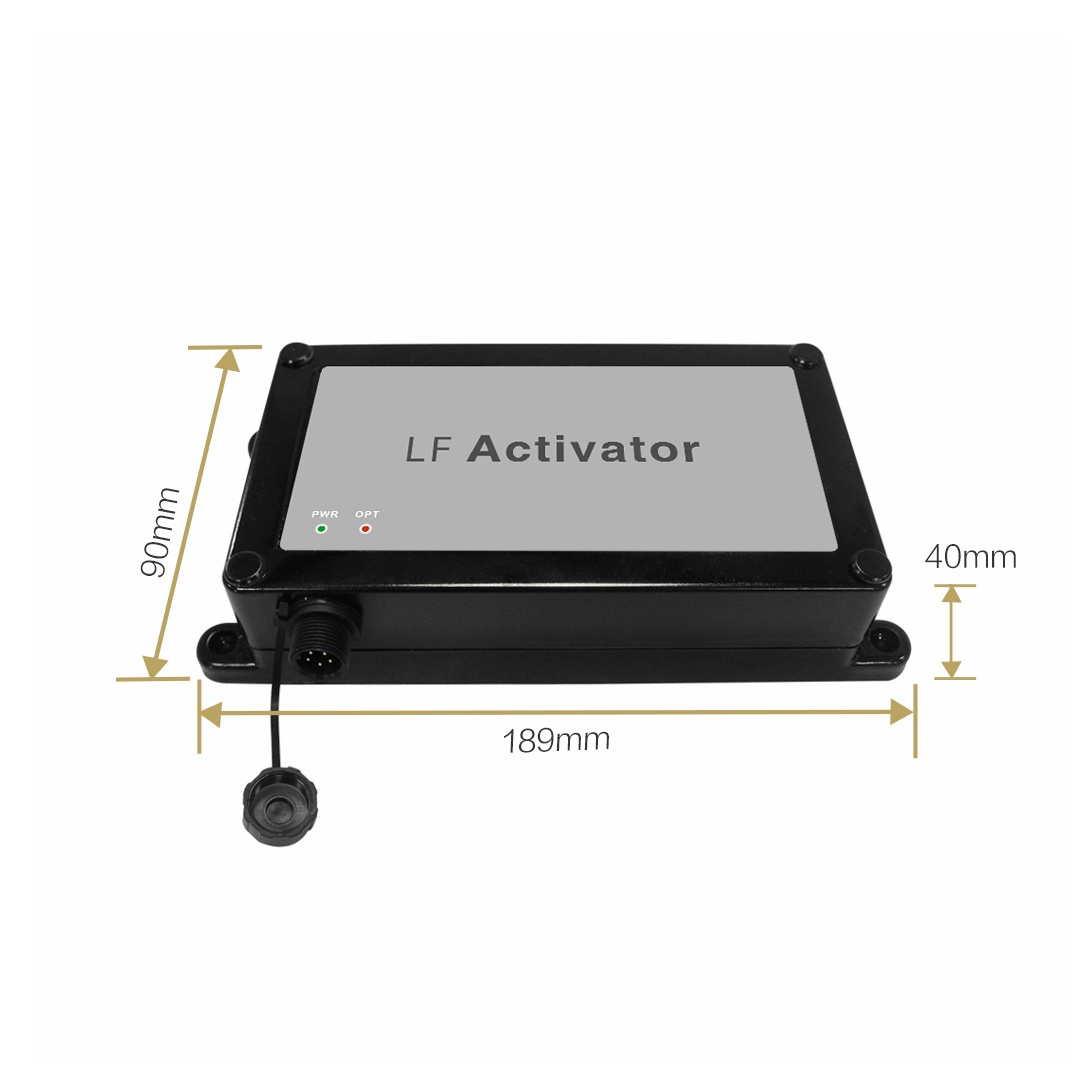

Dimensions	189 × 90 × 40mm
Weight	225g

Our Services

Wondering if our RFID device can work for you? Finding out is simple.

We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
