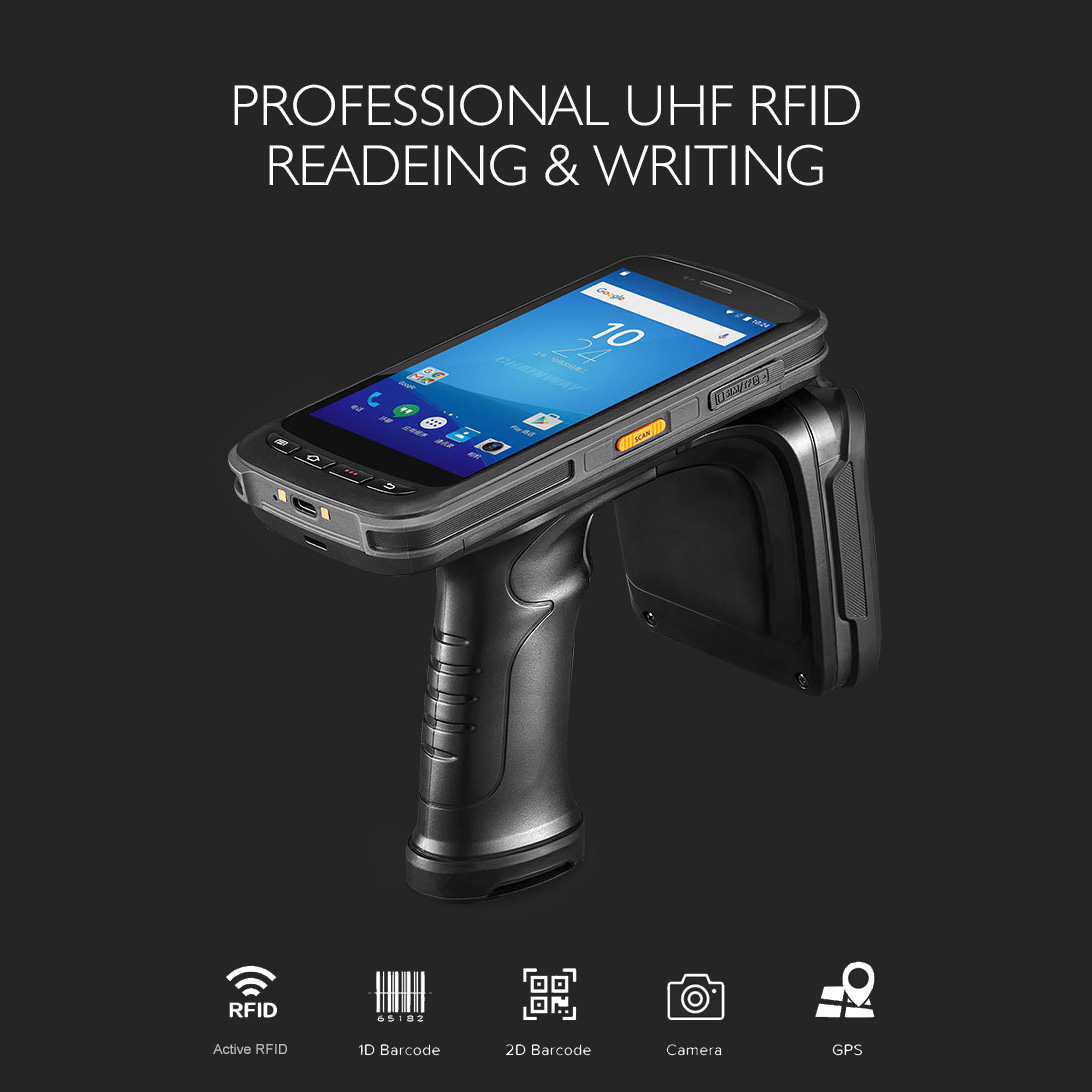

2.45GHz Active RFID |
|
| Frequency |
2.40~2.48GHz |
|
Sensitivity |
-90dBm |
|
Output Power |
Max + 15aBm (Software adjustment 2dBm) |
|
Reading Range |
0-80m (depend on the tag power output) |
|
Identification speed |
150/s |
|
Anti-collision |
150 tags reading simultaneously |
|
Application Software Platform |
Provide development kit of API |
|
*Ranges and rates depend on tags and environment |
|
| Performance | |
| CPU | Octa-core, 2.3GHz |
| RAM+ROM |
3GB + 32GB3GB+ 32GB / 4GB + 64GB (optional) |
| Expansion | Supports up to 256GB Micro SD (TF) card |
| Operating System | Android 11/13; GMS, 90-day security updates, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. |
| Communication | |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| WWAN |
4G:B1B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B34/B38/B39/B40/B41 |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Physical Characteristics | |
| Dimension | 164.2 x 80.0 x 24.3mm |
| Weight |
654g |

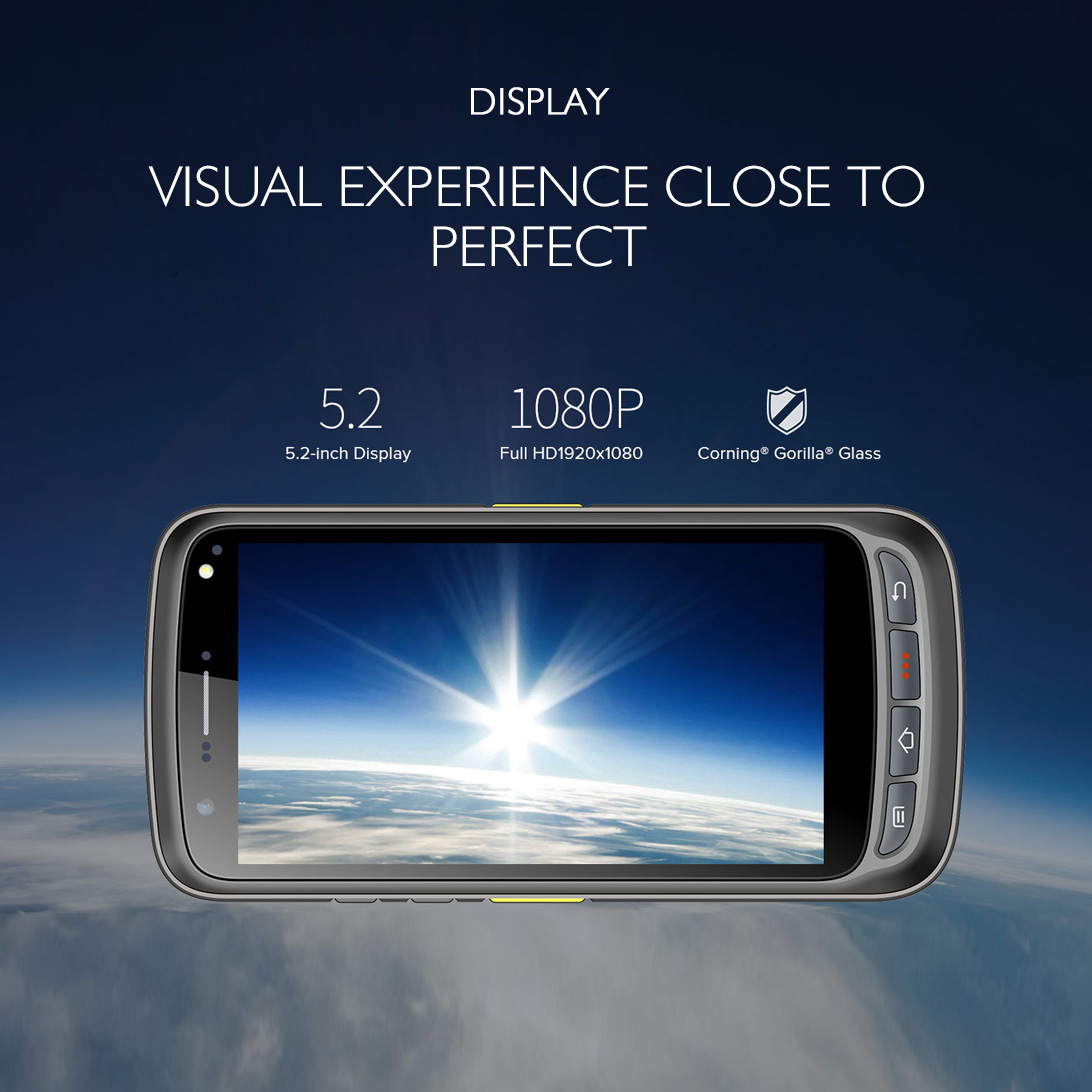

| Display | 5.2'' IPS FHD 1920 x 1080 |
| Touch Panel |
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
|
|
Power |
Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
|
Expansion Slot |
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
|
Interfaces |
USB 2.0 Type-C, OTG, Type-C headphones supported |
|
Audio |
1 microphone; 1 speaker; receive |
|
Keypad |
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
|
Sensors |
Light sensor, proximity sensor, gravity sensor |

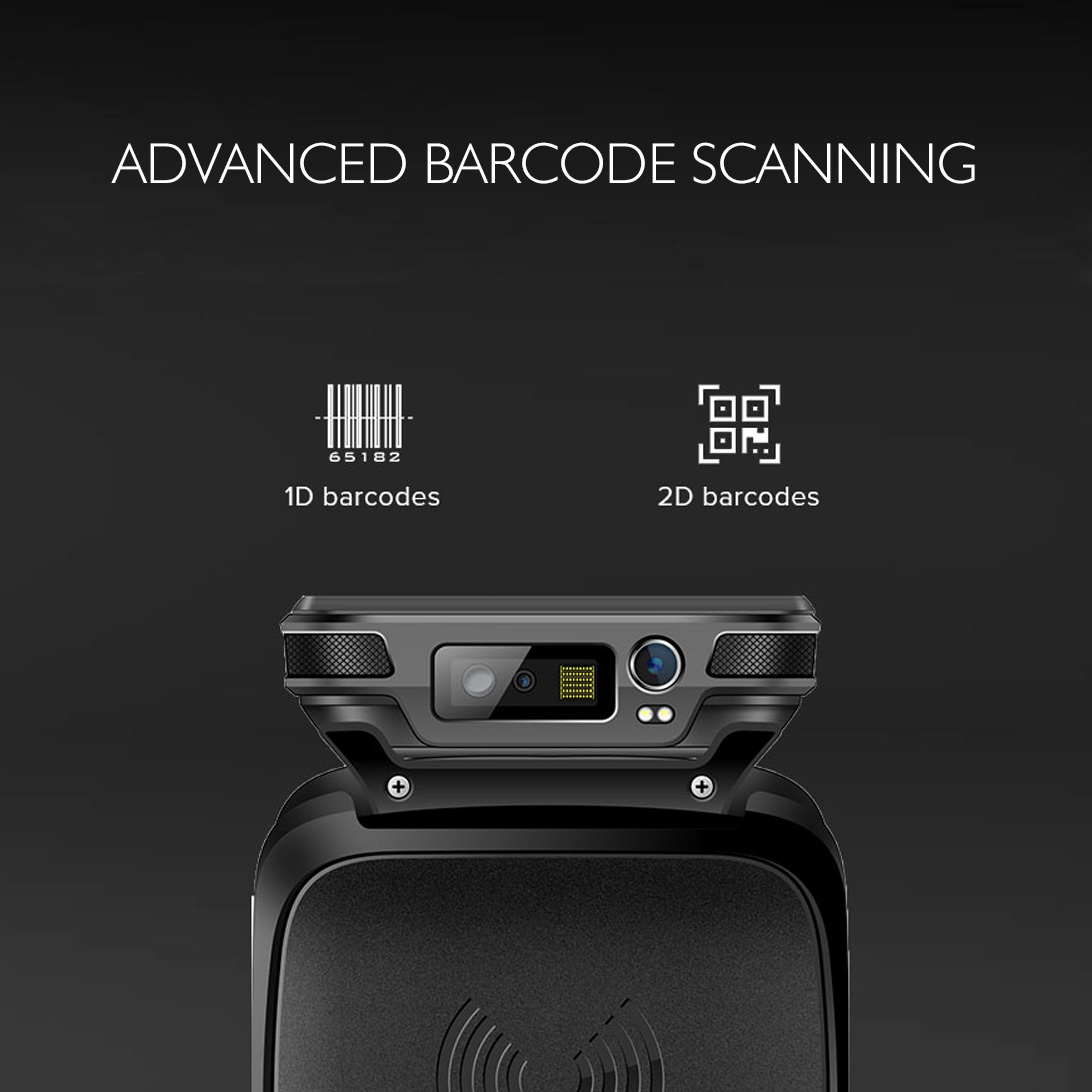

| Barcode Scanning | |
| 2D Imager Scanner | Zebra: SE4710 |
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
|
| Camera | |

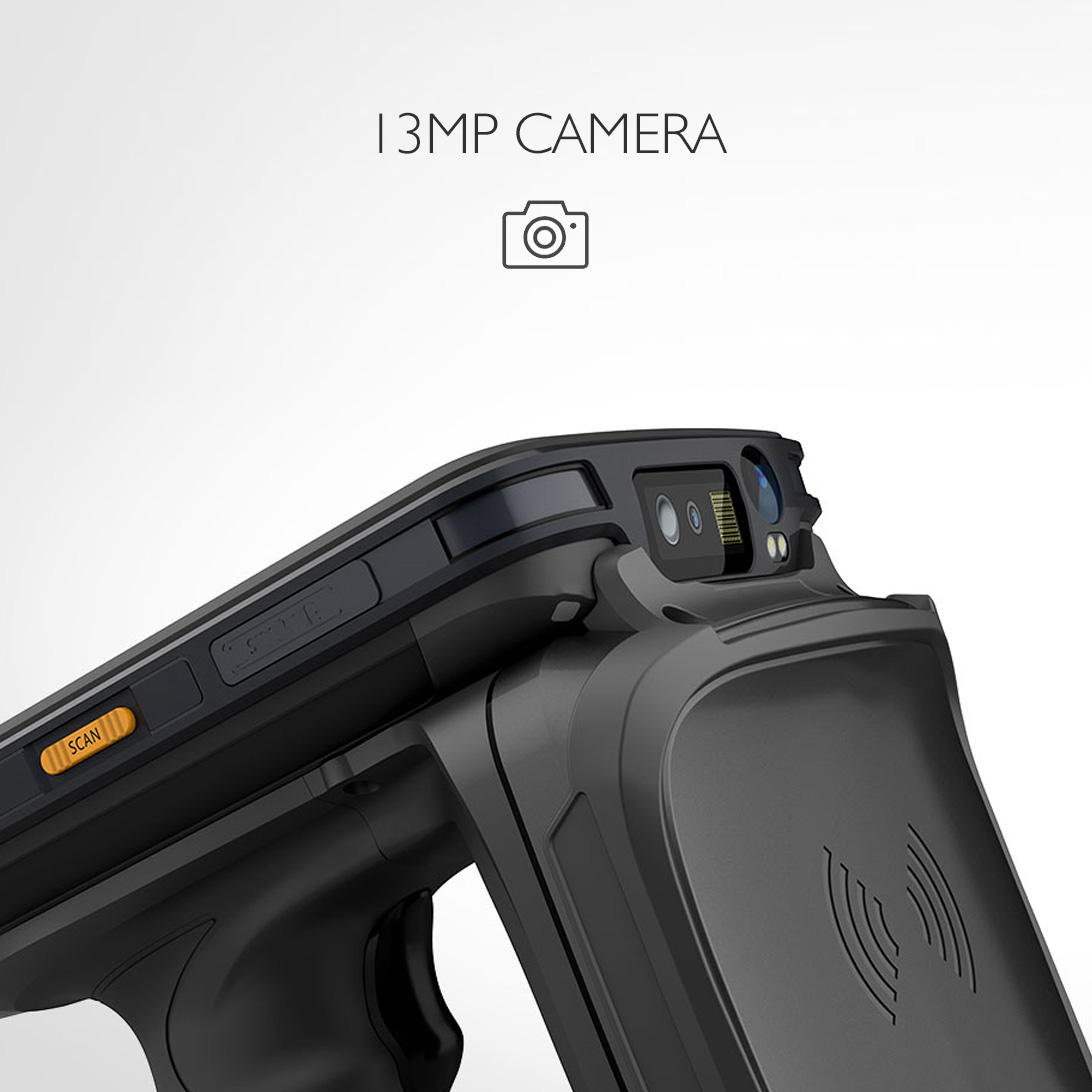

| Camera |
13 MP Autofocus with flash
|
| User Environment | |
| Operating Temp. |
-20 °℃ to 50 °C
|
| Storage Temp. | -40 °C to 70 °C |
|
Humidity |
5% RH - 95% RH non condensing |

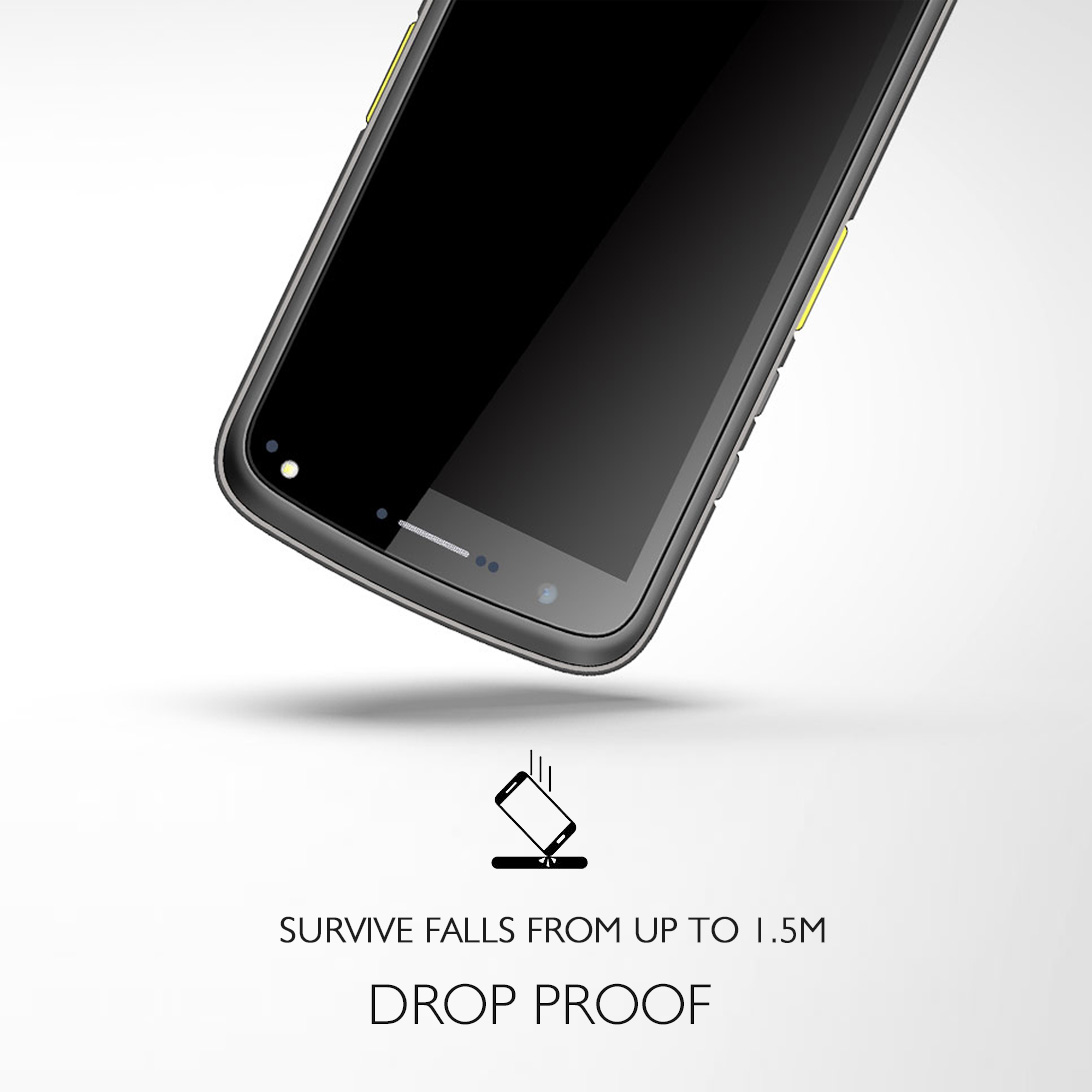

| Drop Specification | Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range |
|
Tumble Specification |
1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing |

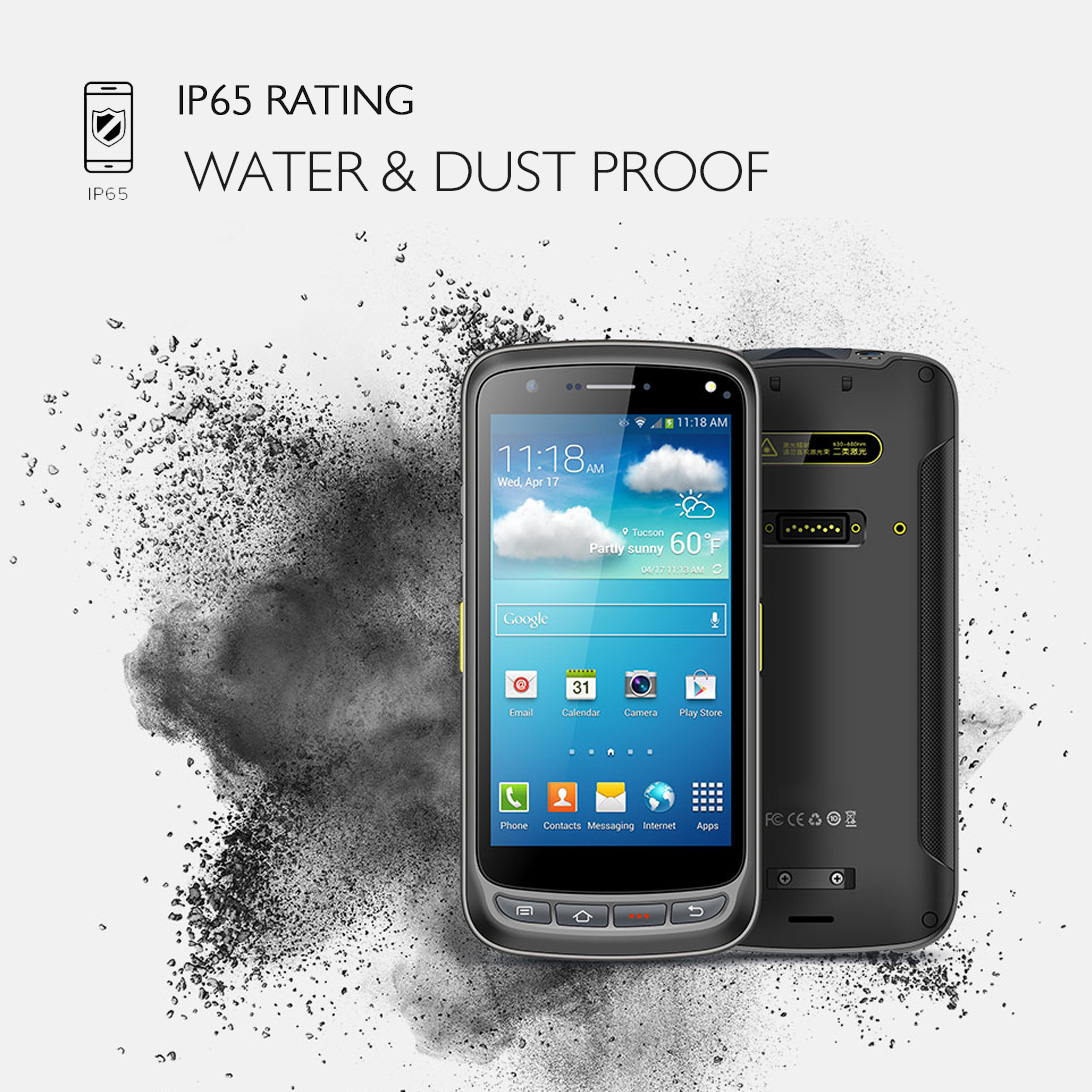

IP65 per IEC sealing specifications
|
| ESD | ±15 KV air discharge, ±6 KV conductive discharge |
|
Developing Environment |
|
| Language |
Java
|
| Tool | Eclipse / Android Studio |
|
NFC |
|
| Frequency |
13.56 MHz
|
| Protocol | ISO14443AB, IS015693, NFC-IP1, NFC-P2, etc. |
|
Chips |
M1 card (S50, $70), CPU card, NFC tags, etc. |
|
Range |
2-4 cm |
|
Barcode Scanning (Optional) |
|
| 1D Linear Scanner |
Honeywell: N4313
|
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code1Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,Codabar. MSl, RSS,etc. |
|
2D Imager Scanner |
Zebra: SE4710 /SE4750SR/ SE4750MR/SE4750DP Honeywell: N6603; CM60 |
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Po |
