RS-AT05 2.45 GHz Active RFID LED & Buzzer Tag-RuiSing Technology Co., (HK) Ltd.

RS-AT05 2.45 GHz Active RFID LED & Buzzer Tag

RS-AT05 2.45 GHz active RFID LED & Buzzer tag with waterproof and battery changeable design, the tag RS-AT05 is suitable for many application occasions such as asset management/ monitoring/ locating etc.

Enquiry

Functions

Exclusive low-power consumption, longer working time
Permanent 4-byte basic ID
Passive operating mode
Built in 512 bits user data bank
Supports LED & Buzzer working indications
Battery changeable
Battery auto-detecting, low-power alarm

Parameters

RF Parameter
Operating Frequency	2.40GHz~2.48GHz
Output Power	-6dBm
Sensitivity	-85dBm
Basic Parameters
Basic ID	4-byte
Operating Mode	Passive operating mode
Signal Interval	1s/time (can be customized)
Memory	512 bits
Battery Life	3-years life (related with the operating mode and output power)
Read Range	0-80m (operating with RS-AR01, test under open environment)
Status Indication	LED, Buzzer
Mechanical & Electrical performance

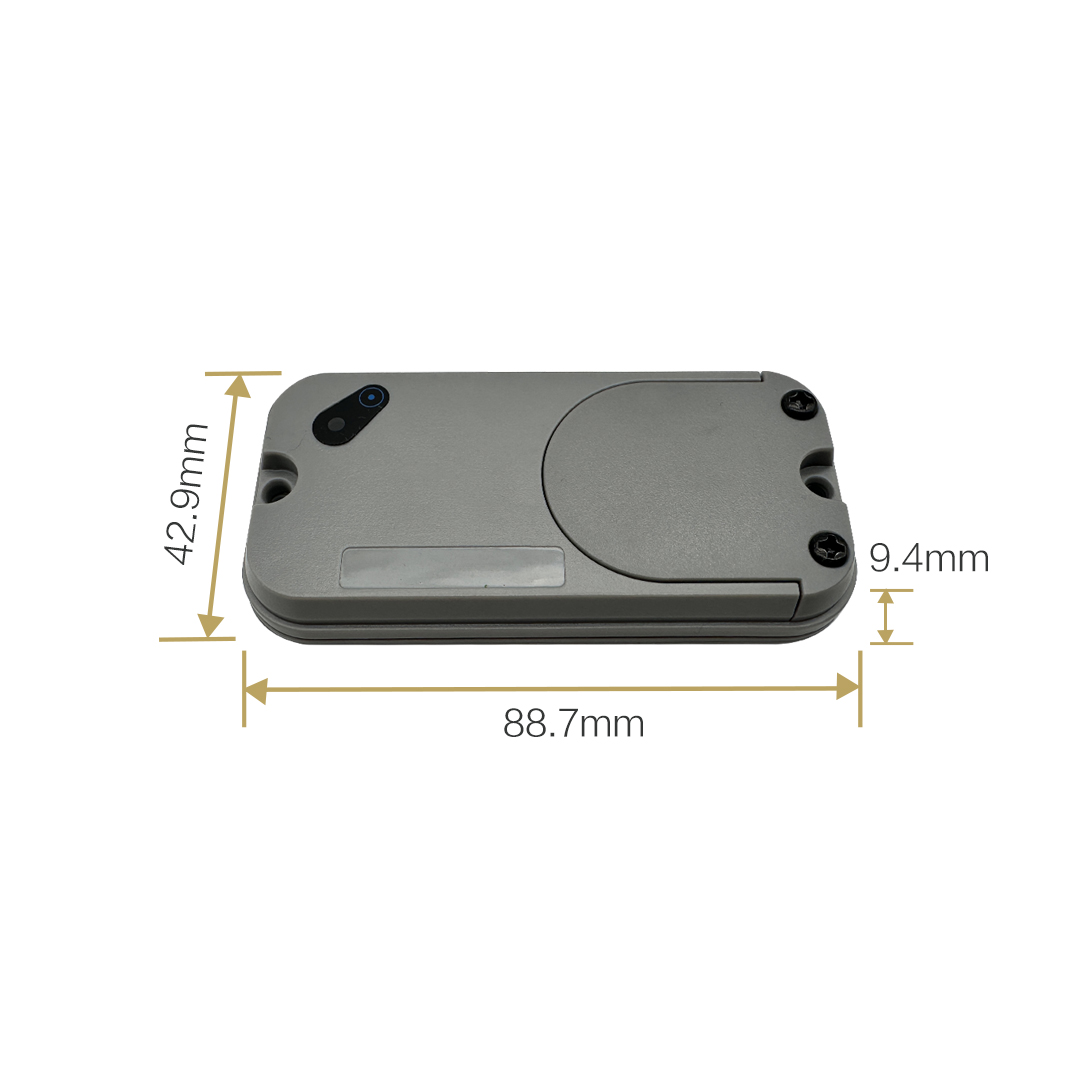

Dimensions	88 ×42 ×9mm
Weight	32g
Operating Temperature	-40℃~+60℃
Storage Temperature	-60℃~+80℃
Humidity	5%~95% (non-condensing)
IP Rating	IP67
Shock Resistance	10~2000Hz, 20mm/15g, Triaxial

Our Services

Wondering if our RFID device can work for you? Finding out is simple.

We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
