RS-AT04 Rugged 2.45 GHz Active RFID Card-RuiSing Technology Co., (HK) Ltd.

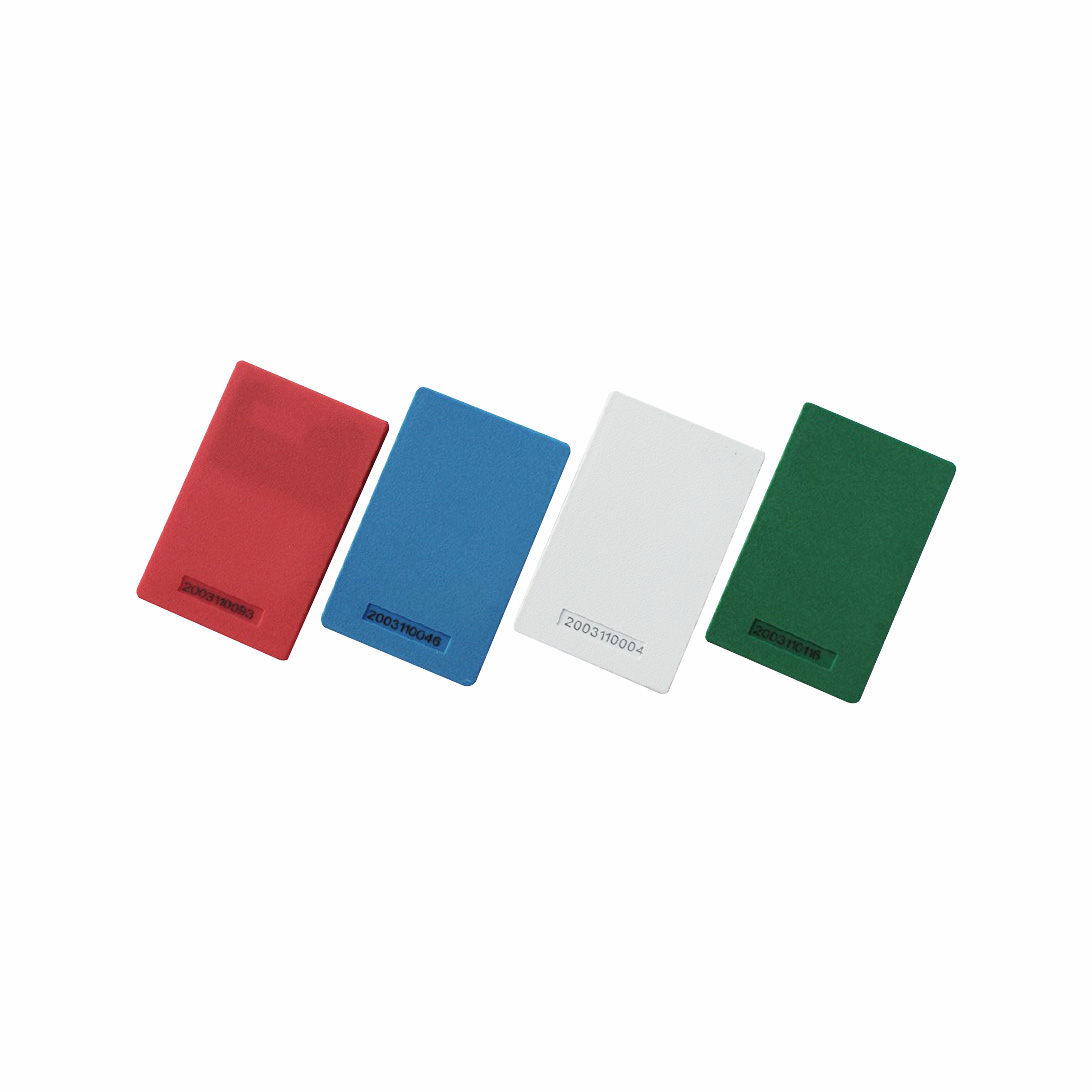

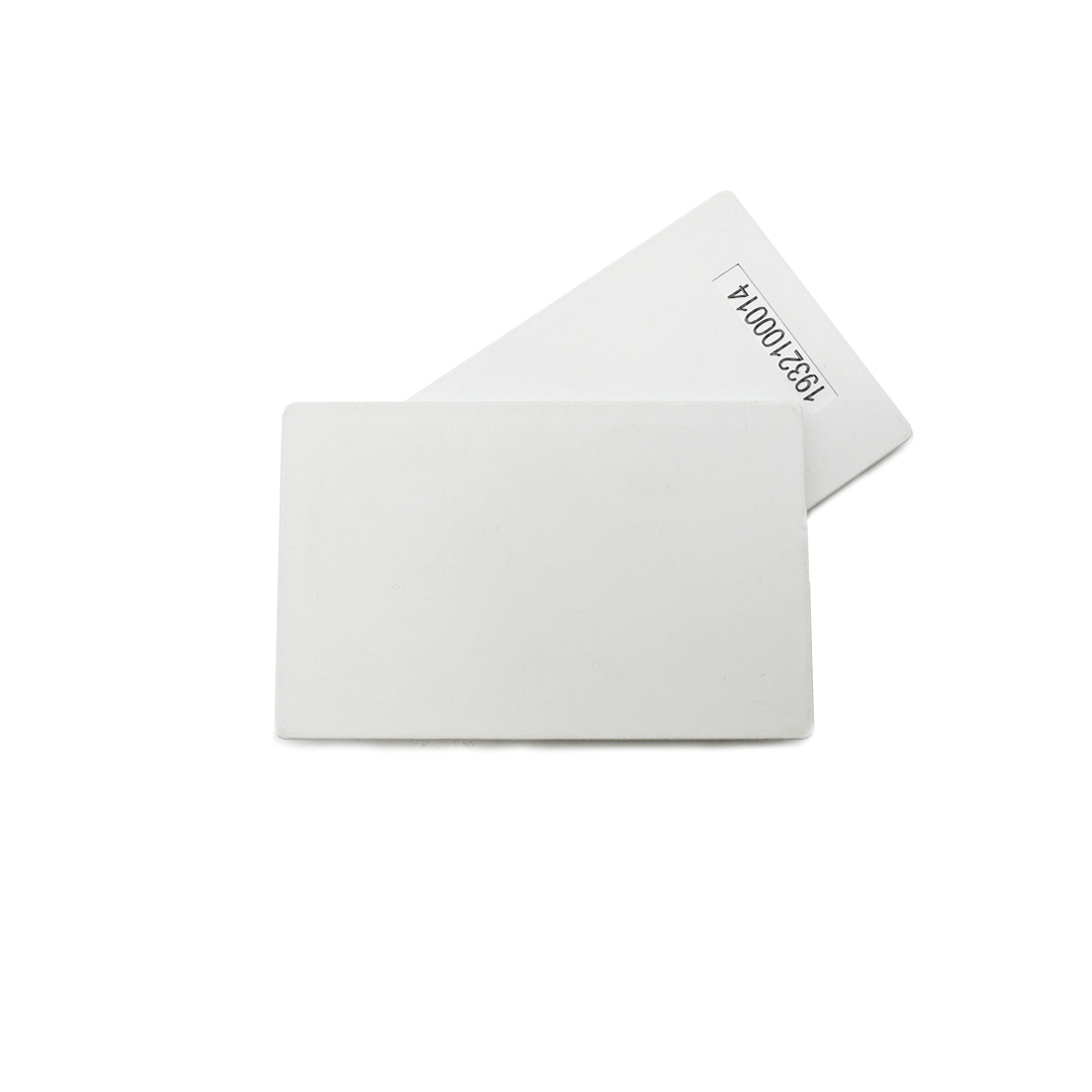

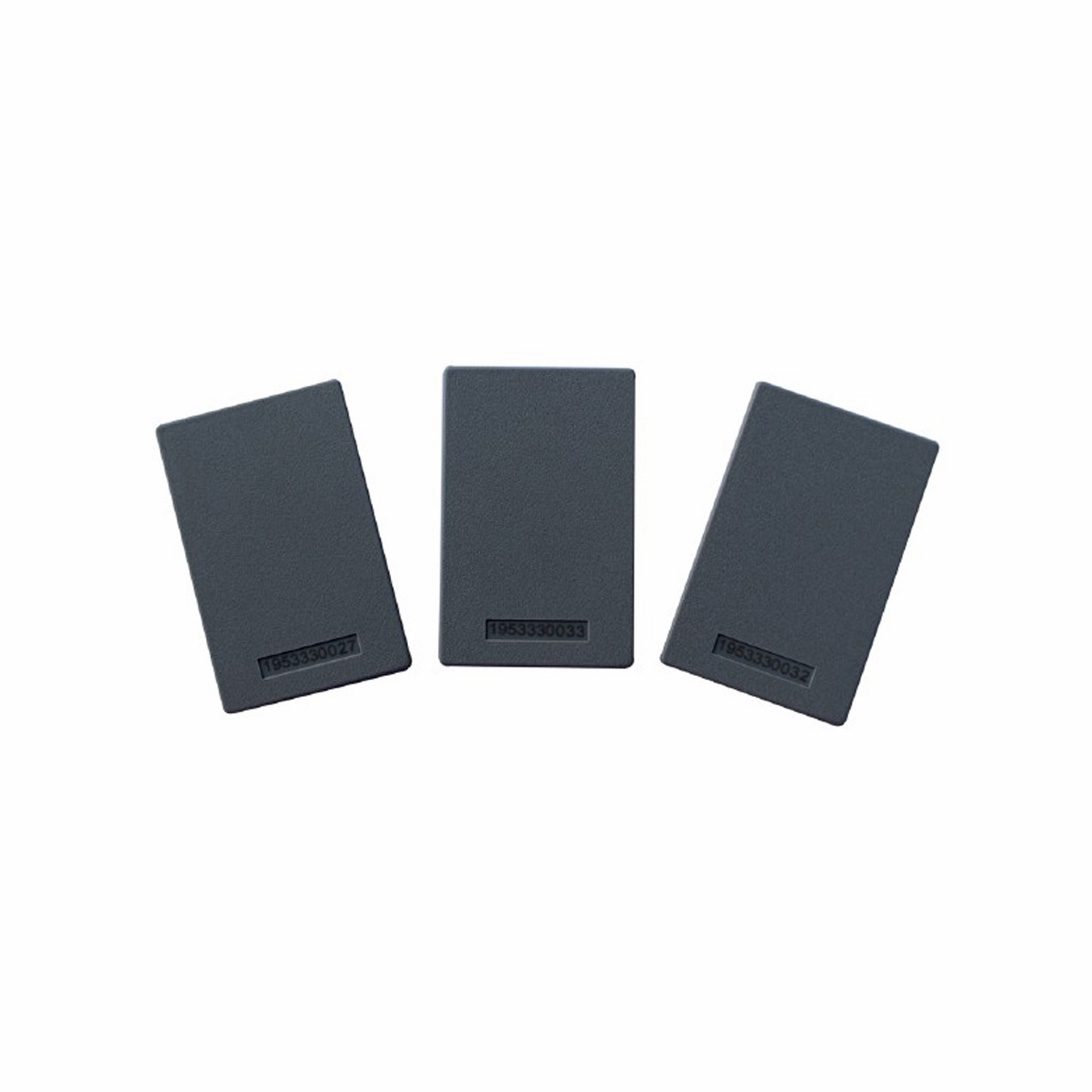

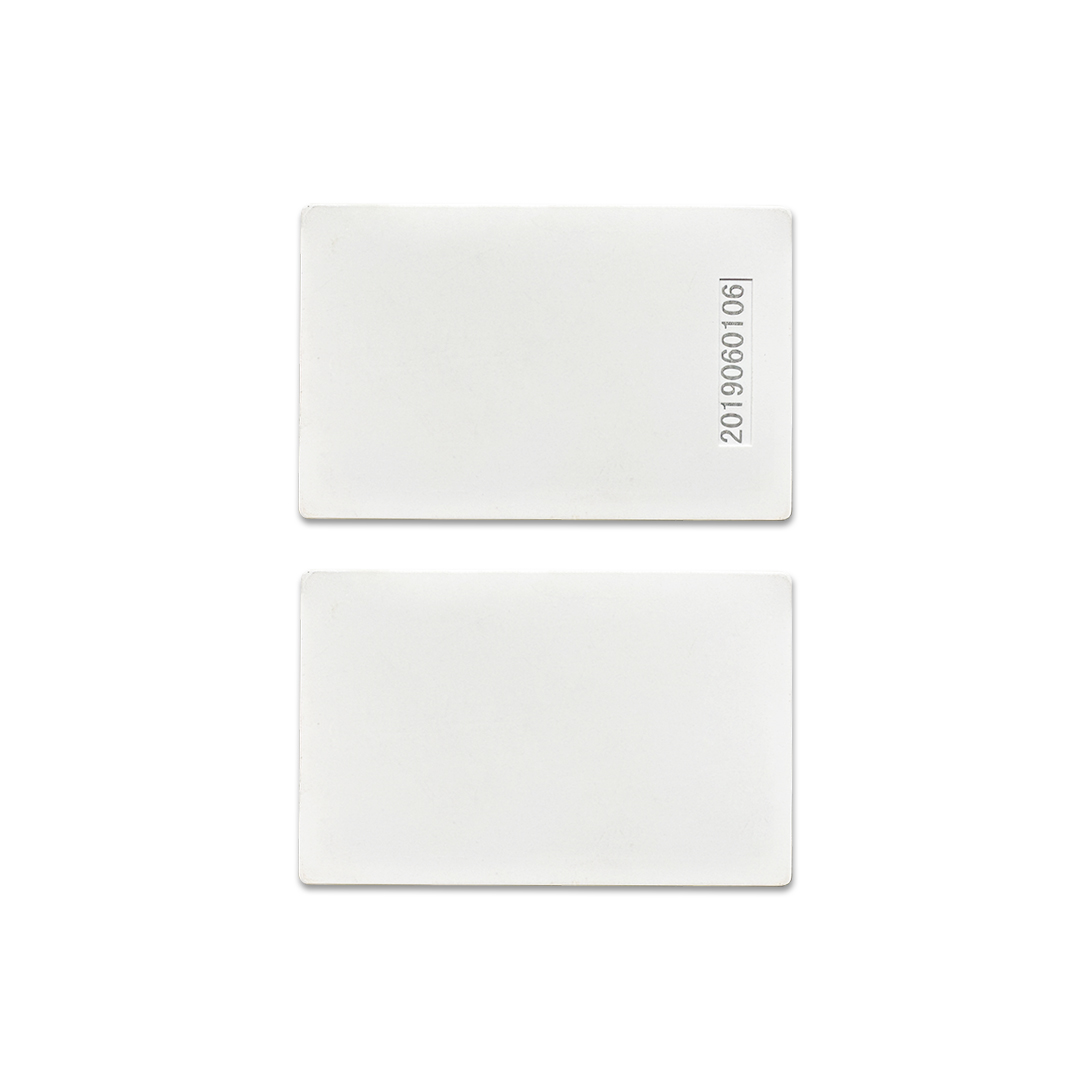

RS-AT04 Rugged 2.45 GHz Active RFID Card

RS-AT04 rugged 2.45 GHz active RFID card operates in the 2.4GHz ISM band, based on high IP67 rating water-proof design, it can be widely used for outdoor applications like pallets tracking, boats management, asset tracking, tooling identification etc.

Enquiry

Functions

ISM 2.4-2.48Ghz Working Frequency
Unique Low Power Consumption and High Capacity, Wide Temperature Tolerance Battery Design, Support Longer Working Time.
Active Working Mode, Around 150m Reading Distance Adjustable
Battery Low Alarm
IP67 Water-Proof Design

Parameters

Permormance Indexes
Working Frequency	2.40GHz~2.48GHz, default value is 2.48GHz
Signal Interval	1s (customizable from 100ms-60s)
Communication Speed	1Mbps
Output Power	-13-+7dBm (default 0dBm)
Tag Id	4 byte
Working Mode	Active
Reading Distance	0-150m (open area, reader antenna type matters)
General Parameters
Operating Temperature	-20℃~+60℃
Storage Temperature	-25℃~+65℃
Humidity	5%~95% (non-condensing)
Battery Life	5-6 year (related to signal interval and RF power)
Battery Low Alarm	Yes, software
Material	ABS+PC

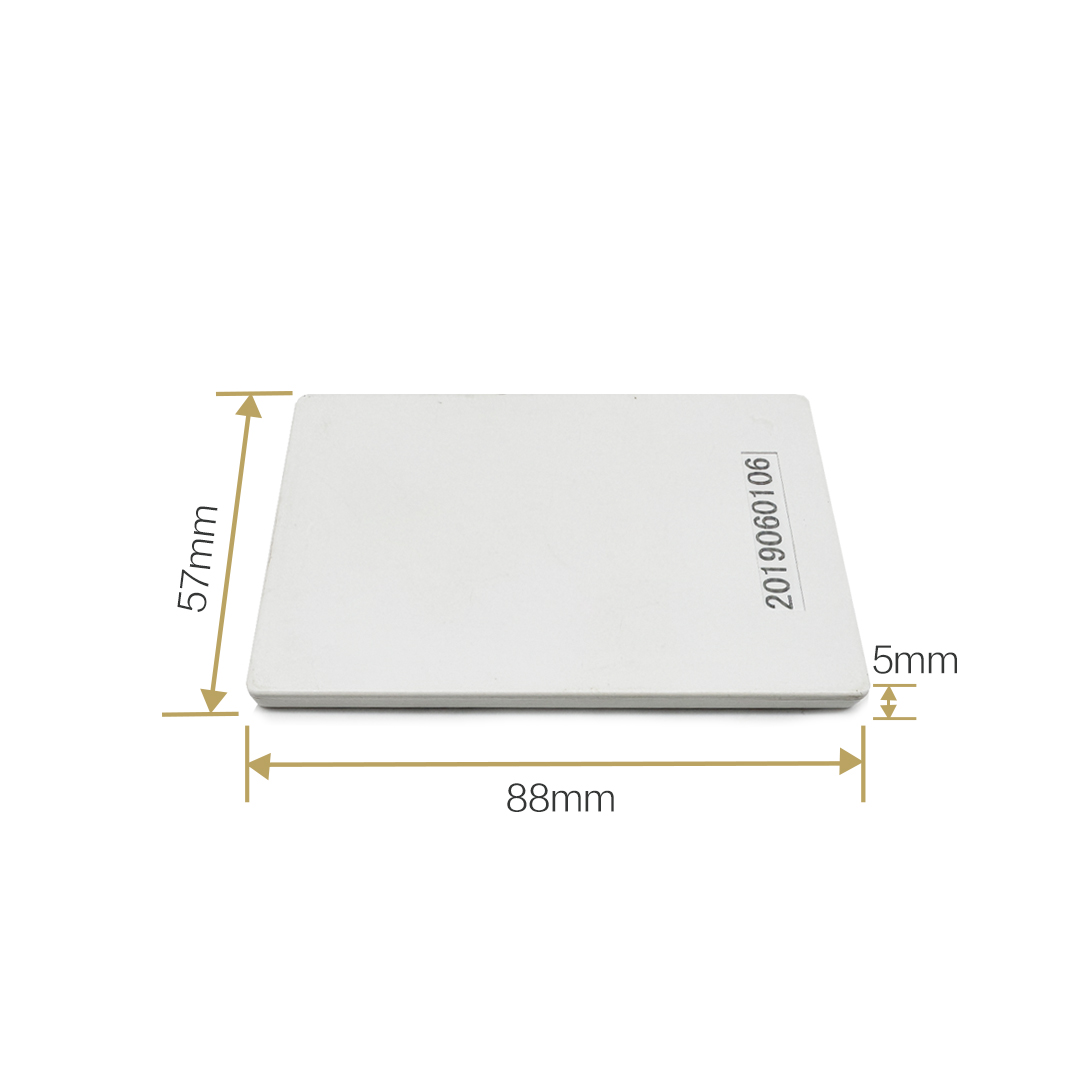

Dimensions	88 × 57 × 5mm
Weight	25g
IP Rating	IP67

Our Services

Wondering if our RFID device can work for you? Finding out is simple.

We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
We supply customers with better product, quicker response, more value added expertise service.
We provide personalized customization services, such as logo, software and hardware customization etc.
